Product Overview

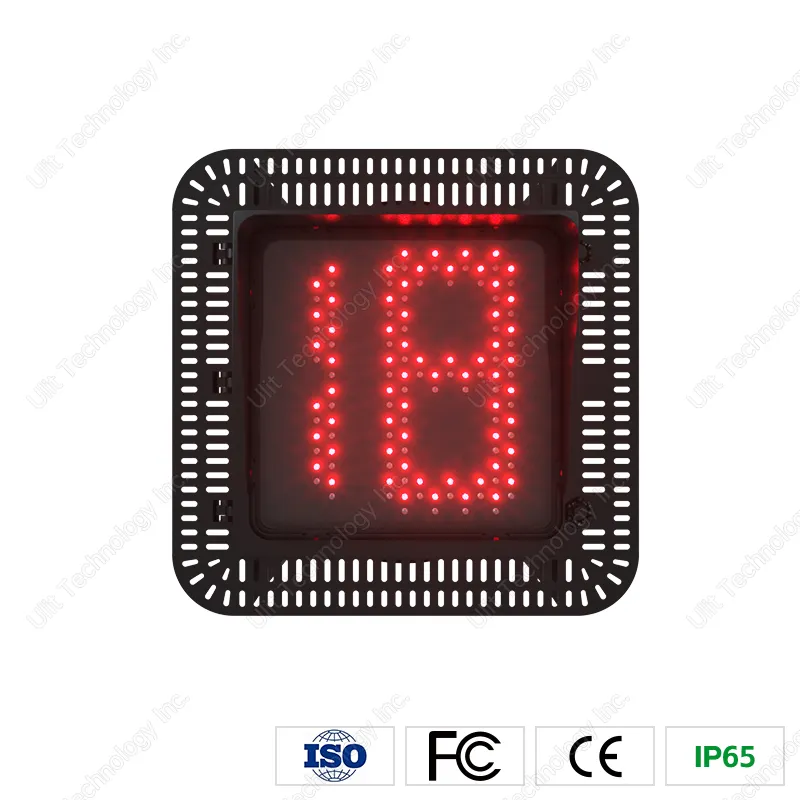

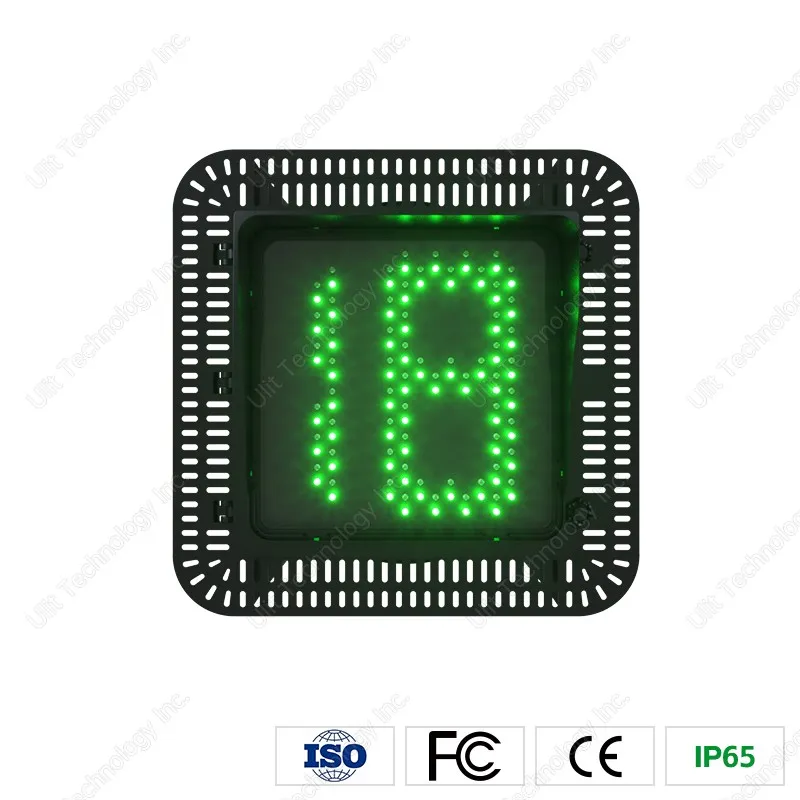

300mm*300mm Metal Housing One and a Half Digit Countdown Timer

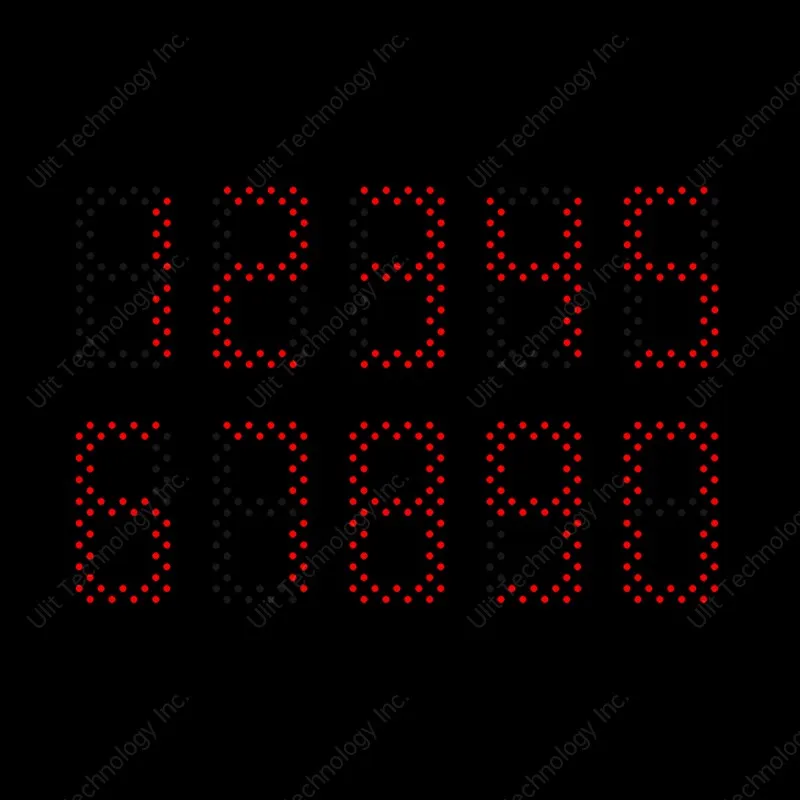

The 300mm*300mm metal housing one-and-a-half-digit countdowntraffic light display with red and green dual-color 8-segmented numbers. It utilizes high-performance, ultra-bright LEDs specifically designed for traffic applications, providing a clear, bright, and uniform display, and preventing missing strokes throughout the entire strokes. The shell is made of environmentally friendly die-cast metal, making it lightweight, high-strength, corrosion-resistant, and maintaining structural stability under high and low temperature conditions. It is CE, RoHS, and FCC certified.
Product Features
It can display two colors, red and green, and one and a half digits;
The countdown traffic light supports single-phase or double-phase display, following type (learning type), communication type (real-time type) and self-adaptive control scheduling display;
The countdown traffic light uses high-performance, ultra-bright LED chips specifically designed for traffic, providing a clear and eye-catching display with uniform brightness;
It supports turning countdown traffic light on or off under non-communication mode, and supports counting and displaying traffic light time more than twice within one signal cycle;

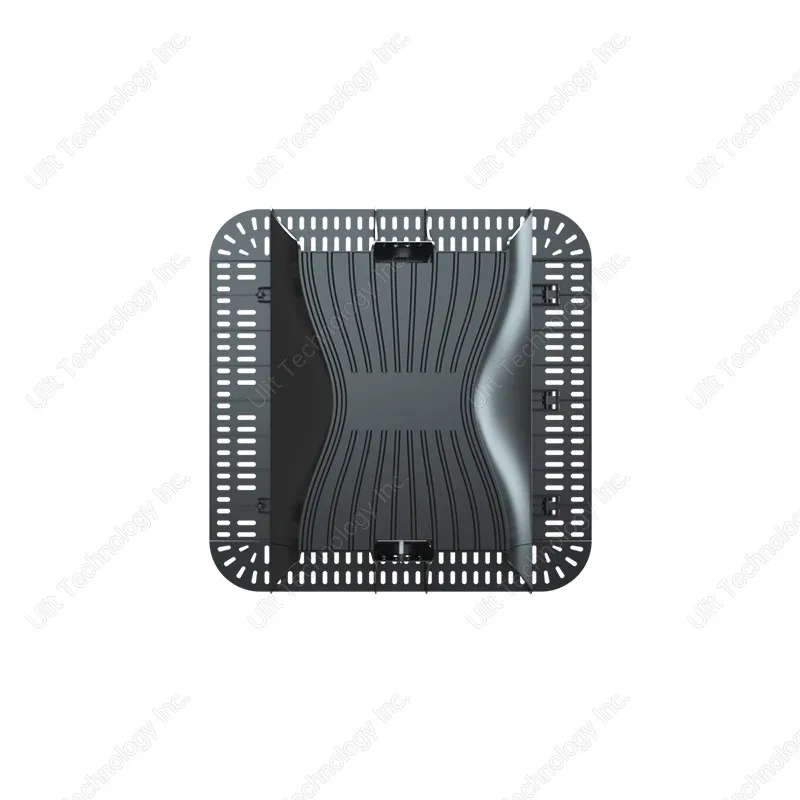

The shell is made of environmentally friendly die-cast metal, making it lightweight, high-strength, corrosion-resistant, and maintaining structural stability under high and low temperature conditions, with a service life exceeding 30 years;
New-type integrated detachable hinge and locking structure design; When not locked, it can prevent opening and falling off;
The installation accessories use stainless steel straps, ensuring a secure and corrosion-resistant installation with no risk of accidental detachment;
The unique detachable waterproof modular design makes it convenient for later maintenance.
Hot Tags: countdown traffic light, China countdown traffic light manufacturers, suppliers, factory, 300mm led traffic countdown display, 300mm led traffic signal countdown module, 300mm pedestrian traffic timer, 300mm traffic cycle timer, 300mm traffic light timer, programmable traffic light timer
Technical Parameters
|
Product Name |
300mm*300mm Metal Housing One and a Half Digit Countdown Timer |
|
Viewing Angle |
30° |
|
Viewing Distance |
≥500m |
|
Communication Mode |
RS485 |
|
Working Voltage |
AC220V/AC110V/DC48V/DC24V/DC12V |
|
Rated Power |
≤4W |
|
Working Temperature |
-20℃～70℃ |
|
Working Humidity |
≤95%RH[(40±2)℃, No Condensation] |
|
IP Rating |
IP65 |
|
Overall Dimensions |
Length490mm * Width 490mm * Height 431mm (including the visor) |
|
Digital Display Range |
0-19 |
|
Display Size (Single Number) |
Width 110mm * Height 230mm |
|
Housing Material |
Magnesium Alloy |
|
Installation Method |
Back Frame (stainless steel strip and special fasteners) |
Product Applications
Certificates
Company Profile
We have been deeply involved in intelligent traffic industry for over 30 years with 15,000 square meter manufacturing base. As a leading manufacturer of traffic intelligent control system, traffic signal and display equipment, a leading provider of city traffic centralized control software, a national high-tech enterprise and a listed enterprise of Beijing Stock Exchange, we also supply OEM/ODM services. Certified by ISO/CE, our products are sold to more than 30 countries, including the USA, Mexico, Germany, Ireland, Romania, Greece, the Netherlands, Israel, Saudi Arabia and so on.
Exhibitions
Production Workshop
FAQ
Q: Are you a factory?
A: Yes. We are a leading manufacturer of LED traffic signal products and intelligent traffic equipment, and a leading IoT (Internet of Things) solution provider in China.
Q: What are your best-selling products?
A: Traffic lights, traffic signs, traffic light systems, LED screens, traffic warning lights, radar speed signs, traffic light controllers, etc..
Q: Which certifications do you have?
A: CE, RoHS, FCC, EN12368, EN12966, IP65, MTC, ISO9001:2015, ISO14001:2015, CMMI-5, CCC and so on.
Q: Whether you could make our brand on your products?
A: Yes. Our R&D department provide strong technical support and enable us to receive OEM and ODM projects.
Q: What's your payment clause and delivery terms?
A:Payment Clause: T/T, L/C, Paypal, Western Union and so on.
Delivery Terms: EXW, FOB, CFR, CIF, DAP, DDP.
