Product Overview

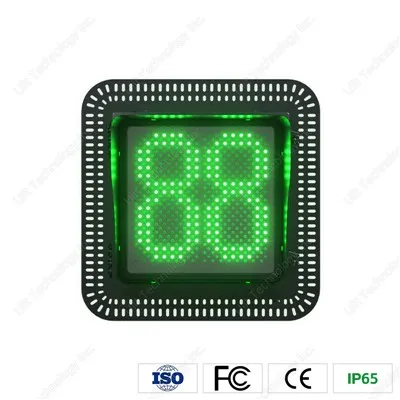

Φ300mm Metal Housing Two Digit Countdown Timer
The 300mm diameter metal housing timer stop light features a red and green dual-color two-digit display with balanced brightness and intuitive visibility, helping to improve traffic efficiency and alleviate congestion. The environmentally friendly die-cast metal housing boasts high hardness, lightweight structure, excellent corrosion resistance, and small deformation under high and low temperature conditions. The product complies with CE, FCC, and RoHS certifications.
Product Features
- Red and green two colors, two digits;
- Support single or double phase display, following type (learning type), communication type (real-time type) and self-adaptive control scheduling display;
- Adopt high quality ultra brightness traffic dedicated LED chips;
- The environmentally friendly die-cast metal housing boasts high hardness, lightweight structure, excellent corrosion resistance, and small deformation under high and low temperature conditions; Its service life is no less than thirty years;
- Support turning on or off the display under non-communication mode and counting and displaying traffic light time of more than 2 times in one signal cycle.
- New-type integrated detachable hinge and locking structure design; When not locked, it can prevent opening and falling off;
- Stainless steel strips are used as installation accessories, ensuring corrosion resistance, secure installation, and no risk of detachment;
- Unique detachable waterproof modular design facilitates maintenance.
Hot Tags: timer stop light, China timer stop light manufacturers, suppliers, factory
Technical Parameters
|
Product Name |
Φ300mm Metal Housing Two Digit Countdown Timer |
|
Viewing Angle |
30° |
|
Viewing Distance |
≥500m |
|
Communication Mode |
RS485 |
|
Working Voltage |
AC220V/AC110V/DC48V/DC24V/DC12V |
|
Rated Power |
≤5W |
|
Working Temperature |
-20℃～70℃ |
|
Working Humidity |
≤95%RH[(40±2)℃, No Condensation] |
|
IP Rating |
IP65 |
|
Overall Dimensions |
Length 490mm * Width 490mm * Height 431mm (including the visor) |
|
Digital Display Range |
0-99 |
|
Display Size (Single Number) |
Width 110mm * Height 230mm |
|
Housing Material |
Magnesium Alloy |
|
Installation Method |
Back Frame (stainless steel strip and special fasteners) |
Product Applications
Certificates
Company Profile
Located in Chongqing, China, Ulit Technology Inc. has been in intelligent traffic industry for more than 30 years with 15,000 square meter manufacturing base. With city intelligent traffic as main business, we can provide various advanced products, whole solutions, software and services related to city traffic, such as traffic control platform, traffic light controllers, traffic lights, traffic signs, countdowns, LED screens, video detectors, speed signs and various solar lights. With ISO 9001:2015 quality management system certification, our products comply with national standards and industry norms, as well as various international standards, such as CE, RoHS, FCC, EN12966 and EN12368. Strong support from our design and technology departments enables us to receive OEM and ODM projects.
Exhibitions

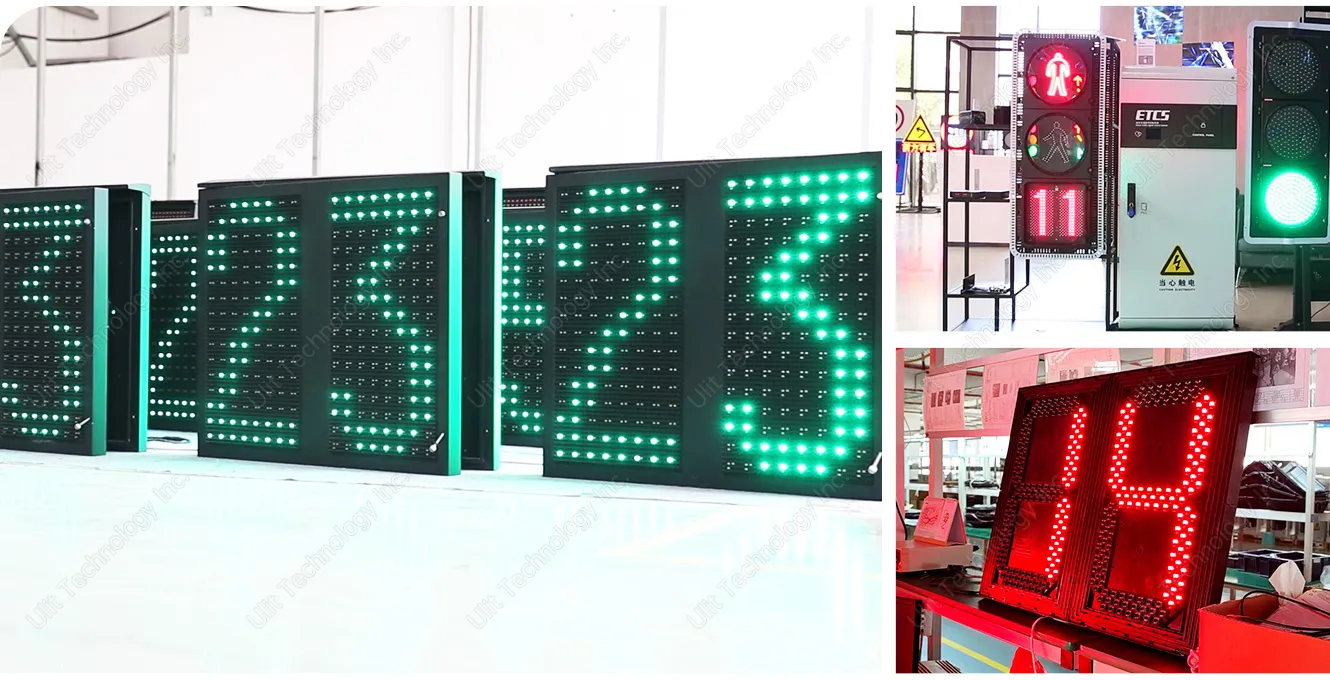

Production Workshop
FAQ
Q: Can I order a sample for testing?
A: Yes, we welcome sample orders to test. We can also make the samples exactly according to your detailed needs and requirements.
Q: How about your delivery time?
A: Typically, in-stock items can be shipped within 7-15 days after receiving the payment. The exact delivery time depends on the products and ordered quantities.
Q: How about the shipping method?
A: We can ship by sea, rail, and air. Samples are usually shipped via DHL, UPS, FedEx and other air transport methods.
Q: How about your warranty?
A: We offer a 2-year warranty and lifetime free remote technical support and service.
Q: How about the packages?
A: The products are first packed in cartons, and then the cartons are packed into standard export wooden cases.
