Product Overview

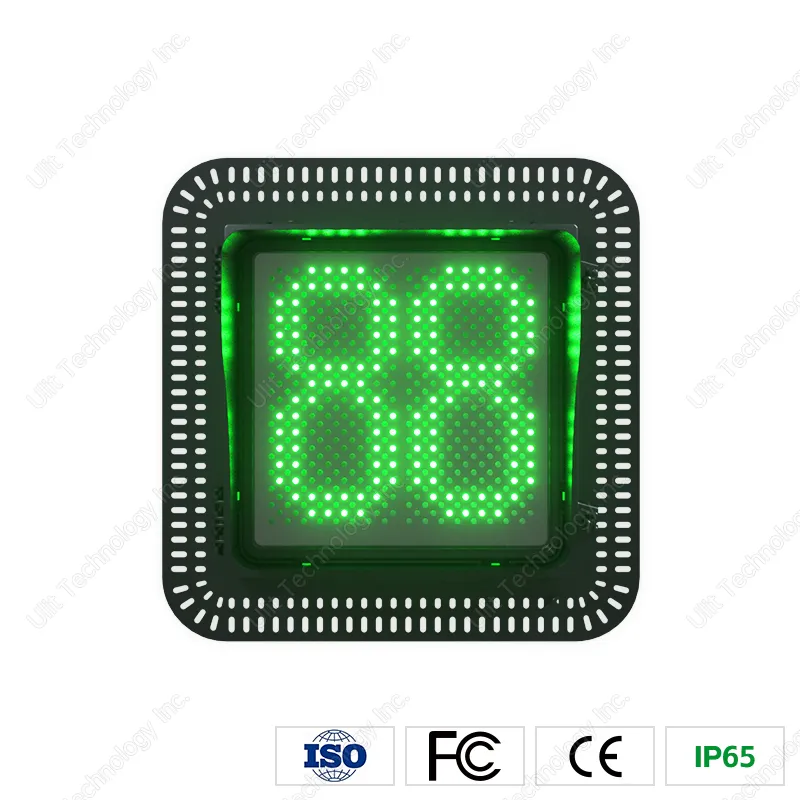

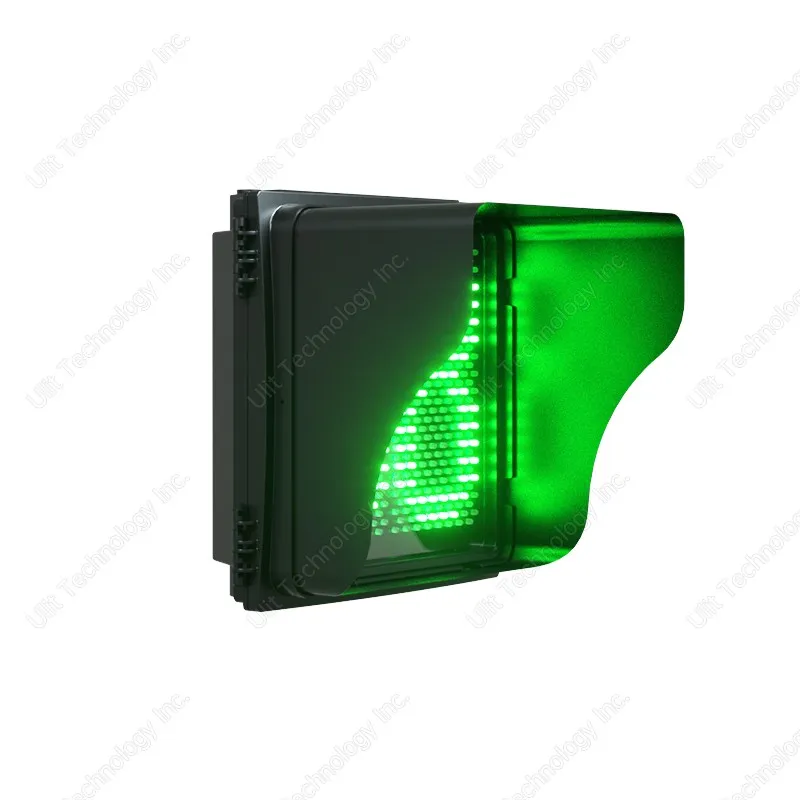

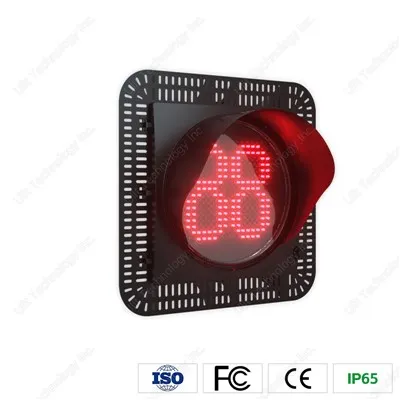

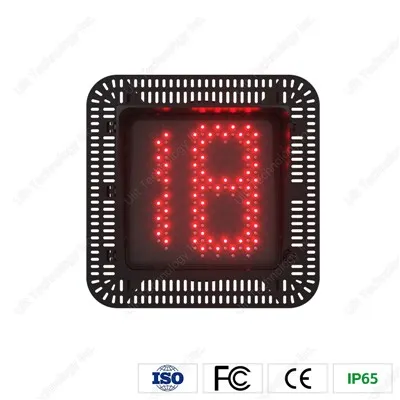

300*300mm Two Digit Dot Matrix Countdown Timer
This 300*300mm two-digit dot matrix traffic light countdown timer features a square traffic countdown display unit. It utilizes a full dot matrix dual-color (red and green) digital display, producing smooth and aesthetically pleasing digit strokes with consistent brightness and no missing strokes. The countdown timer's shell is made of dedicated PC material, possessing excellent structural strength, hardness, heat resistance, impact resistance, corrosion resistance, and aging resistance, providing reliable protection for long-term outdoor use. It is CE, RoHS, and FCC certified.
Product Features

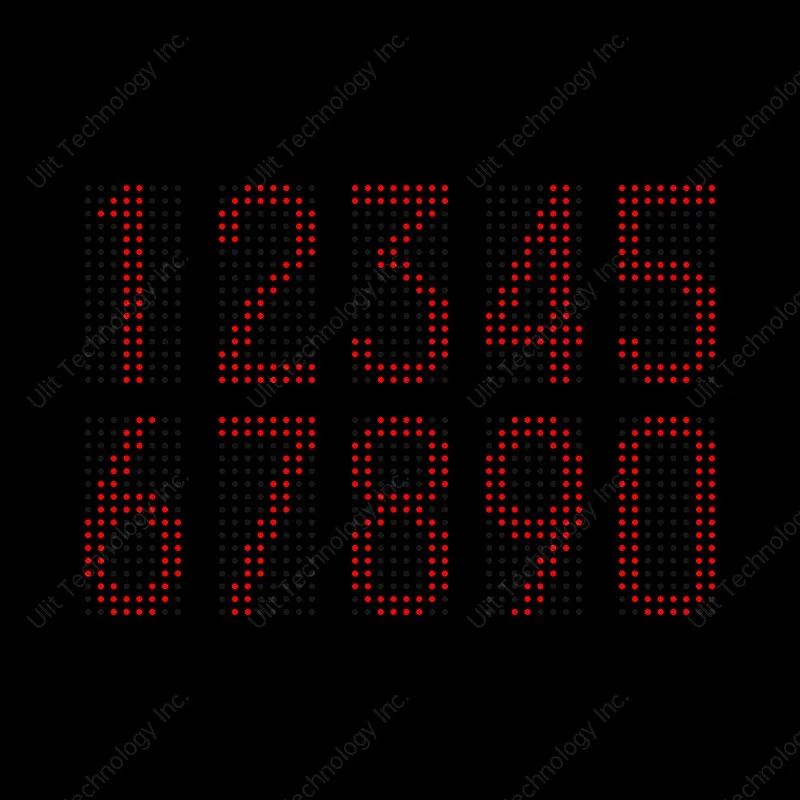

Dot matrix dynamic number display in red and green two colors;
Support single or double phase display, following (learning) type, communication (real-time) type and self-adaptive control scheduling display;
It uses premium ultra-bright traffic dedicated LED chips;
The countdown timer's shell is made of dedicated PC material, possessing excellent structural strength, hardness, heat resistance, impact resistance, corrosion resistance, and aging resistance, providing reliable protection for long-term outdoor use;
It supports turning the traffic light countdown timer on or off in no-communication mode, and supports counting and displaying the traffic light time more than twice within one signal cycle;
New-type integrated detachable hinge and locking structure design; When not locked, it can prevent opening and falling off;
Stainless steel strip as installation accessories of the traffic light countdown timer, it is steady and anti-corrosion, no risk of falling off;
Unique detachable waterproof modular design, good maintenance convenience;
HiPLC Communication: Support HiPLC communication function; Support remotely querying the operating state of traffic lights; Support proactively reporting failures of LED string light damage, communication and so on; Support luminance adjustment; Can realize luminance adjustment step by step according to environment sensor data, no dazzling at night; (Optional)
Hot Tags: traffic light countdown timer, China traffic light countdown timer manufacturers, suppliers, factory
Technical Parameters
|
Product Name |
300*300mm Two Digit Dot Matrix Countdown Timer |
|
Central Light Strength |
≥5,000cd |
|
Viewing Angle |
30° |
|
Viewing Distance |
≥500m |
|
Communication Mode |
RS485 (Standard) / HiPLC (Optional) |
|
Working Voltage |
AC220V/AC110V/DC48V/DC24V/DC12V |
|
Rated Power |
≤5W |
|
Working Temperature |
-20℃～70℃ |
|
Working Humidity |
≤95%RH[(40±2)℃, No Condensation] |
|
IP Rating |
IP65 |
|
Overall Dimensions |
Length 480mm * Width 480mm * Height 339mm |
|
Digital Display Range |
0-99 |
|
Display Size (Single Number) |
Width 110mm * Height 230mm |
|
Housing Material |
PC |
|
Installation Method |
Back Frame (stainless steel strip and special fasteners) |
Product Applications
Certificates

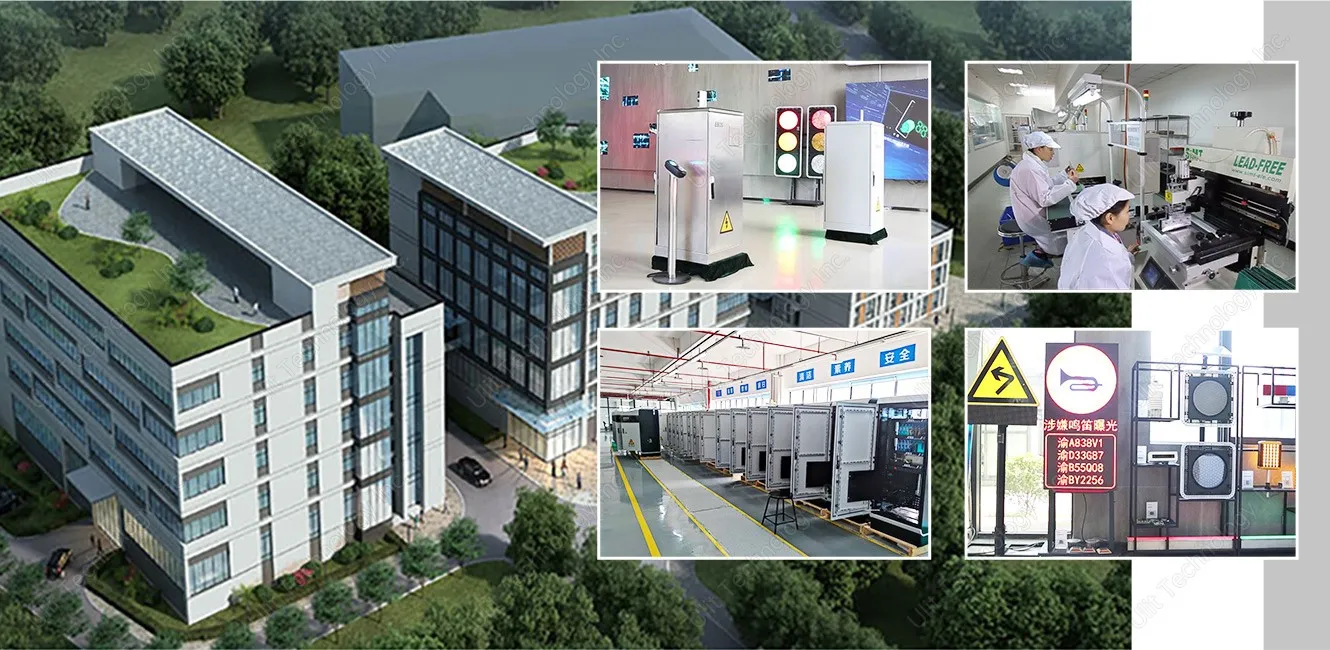

Company Profile
Having been Involved in intelligent traffic industry for more than 30 years, Ulit Technology Inc. is a leading manufacturer of traffic intelligent control system, traffic signal and display equipment, a leading provider of city traffic centralized control software, a national high-tech enterprise and a listed enterprise of Beijing Stock Exchange. We have been providing products and services to customers in the USA, Mexico, Germany, Ireland, Romania, Greece, the Netherlands, Israel, Saudi Arabia, India, Vietnam, Singapore and many other countries. Our company always advocates customer focus and adheres corporate philosophy of "innovation transcends dreams and hard work creates value". We keep perfecting our core technology products over ten years and are always strenuously making continuous contribution for unblocked city!
Exhibitions

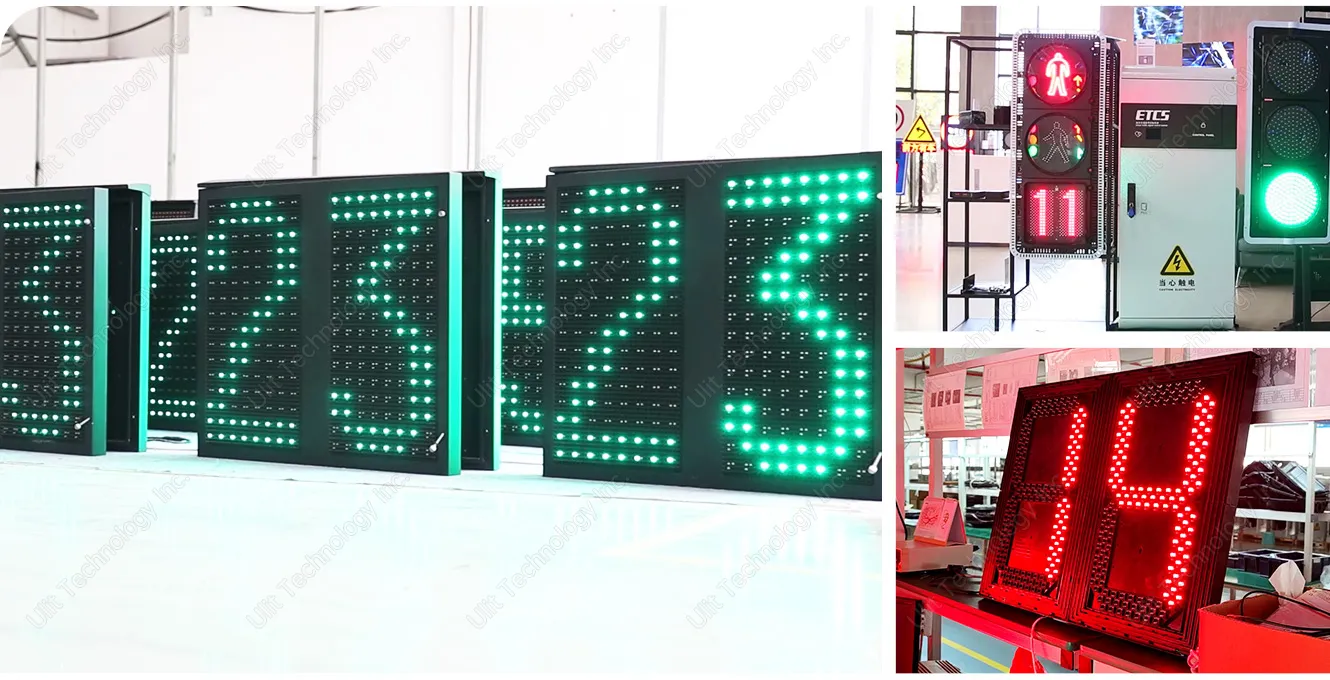

Production Workshop
FAQ
Q: Do your products come with accompanying software systems?
A: Yes. For products that require accompanying software, we provide our own proprietary software. Some of our products also support integration with software from other major manufacturers.
Q: How do you guarantee the quality of your products?
A: We have a very strict quality controlling system to ensure that all the products are delivered with high quality. Strict detection during each production step. Strict full inspection on products before shipment and intact product packaging ensured.
Q: Can you send me your catalogue?
A: Please send an email to our email address cqulit@sina.com for catalogue. We will reply you with our latest catalogue to your email.
Q: What's the price of the traffic light countdown timer?
A: Price is negotiable. Based on different quantities and detailed requirements, the prices are a little different. Please kindly contact us for more detailed prices.
Q: Can I have some information about your scope of business?
A: Our company can provide various advanced products, whole solutions, software and services related to city traffic, such as traffic control platform, traffic light controllers, traffic lights, traffic signs, countdowns, LED screens, video detectors, speed signs and various solar lights.
