Product Overview

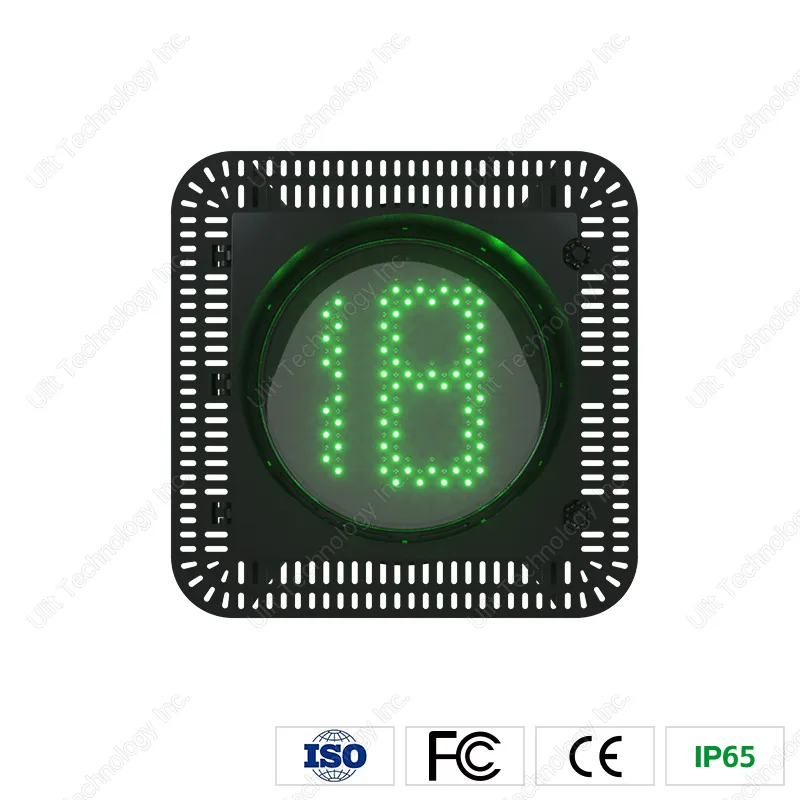

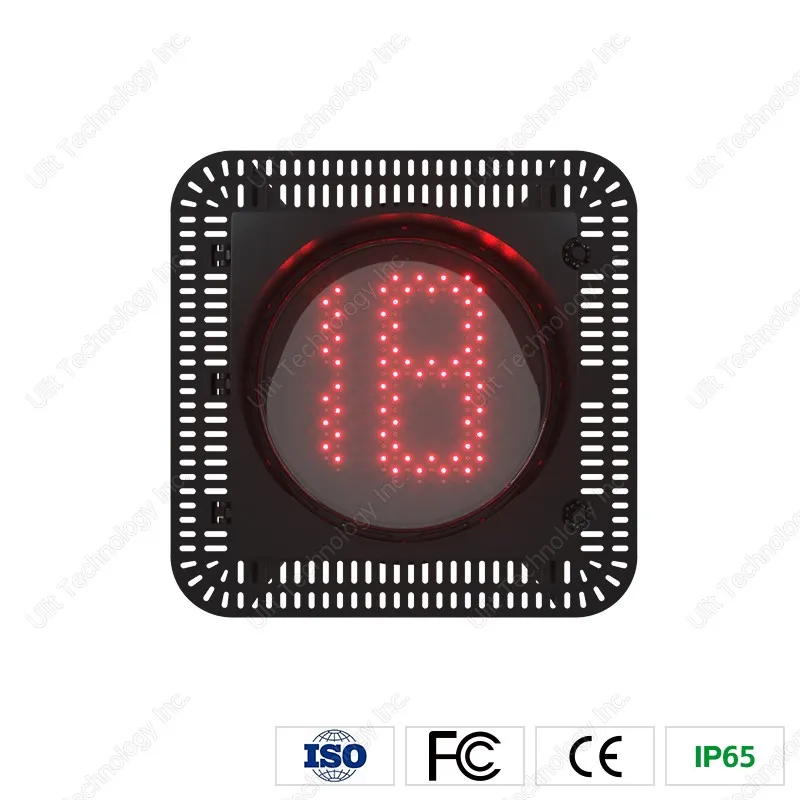

Φ300mm Metal Housing One and a Half Digit Countdown Timer
This 300mm diameter metal housing one and a half digit countdown pedestrian signal features both red and green display colors. The light-emitting elements use high-quality, high-brightness LEDs specifically designed for traffic use, ensuring uniform brightness, clear visibility, and excellent display performance. Its housing is made of environmentally friendly die-cast metal, making it lightweight, high-strength, and possessing excellent corrosion resistance with small deformation under extreme temperature conditions. It complies with CE, RoHS, and FCC certificates.
Product Features
The countdown pedestrian signal supports turning on or off the display under non-communication mode and counting and displaying traffic light time of more than 2 times in one signal cycle;
The light-emitting elements use high-quality, high-brightness LEDs specifically designed for traffic use, ensuring uniform brightness, clear visibility, and excellent display performance.
- It also supports single or double phase display, following type (learning type), communication type (real-time type) and self-adaptive control scheduling display;
- New-type integrated detachable hinge and locking structure design; When not locked, it can prevent opening and falling off;
- Stainless steel strip as installation accessories, steady and anti-corrosion, no risk of falling off;
- Unique detachable waterproof modular design, good maintenance convenience;
Hot Tags: countdown pedestrian signal, China countdown pedestrian signal manufacturers, suppliers, factory
Technical Parameters
|
Product Name |
Φ300mm Metal Housing One and a Half Digit Countdown Timer |
|
Viewing Angle |
30° |
|
Viewing Distance |
≥500m |
|
Communication Mode |
RS485 |
|
Working Voltage |
AC220V/AC110V/DC48V/DC24V/DC12V |
|
Rated Power |
≤4W |
|
Working Temperature |
-20℃～70℃ |
|
Working Humidity |
≤95%RH[(40±2)℃, No Condensation] |
|
IP Rating |
IP65 |
|
Overall Dimensions |
Length 490mm * Width 490mm * Height 431mm (including the visor) |
|
Digital Display Range |
0-19 |
|
Display Size (Single Number) |
Width 110mm * Height 230mm |
|
Housing Material |
Magnesium Alloy |
|
Installation Method |
Back Frame (stainless steel strip and special fasteners) |
Product Applications
Certificates
Company Profile
Ulit Technology Inc. has been deeply involved in the intelligent traffic industry for over 30 years, boasting a 15,000-square-meter production base. With urban intelligent traffic as our core business, our company provides a variety of advanced products, integrated solutions, software, and services, covering traffic control platforms, traffic light controllers, traffic lights, traffic signs, countdown timers, LED displays, video detectors, speed signs, and various solar lighting equipment. We also offer OEM/ODM services. Our products have passed multiple international certifications, including ISO/CE, RoHS, FCC, EN12368, and EN12966, and are exported to more than 30 countries and regions, including Mexico, the United States, Germany, Ireland, Romania, Greece, the Netherlands, Israel, and Saudi Arabia.
Exhibitions
Production Workshop
FAQ
Q: Can I have a sample?
A: Of course, we support sample orders.
Q: What's the delivery time?
A: Shipping time depends on the specifications of the products you order. For in-stock products, shipping usually takes around 7-15 days. For customized products, the production time is typically around 30 days.
Q: Which city or port do you ship from?
A: Our main manufacturing plant is in Chongqing, but we also have branch offices in other cities. We can ship from all major ports and cities in China.
Q: Do you have any MOQ limit?
A: Our company supports testing with one or more samples, and we can also customize samples according to your specific requirements. There is no minimum order quantity (MOQ) limit.
Q: Do you offer after-sales service?
A: Most of our products come with a 2-year warranty. If a product experiences a quality issue within the warranty period, we will send you replacement parts free of charge. After the warranty period expires, we will continue to provide free lifetime remote technical support and service.
