Product Overview

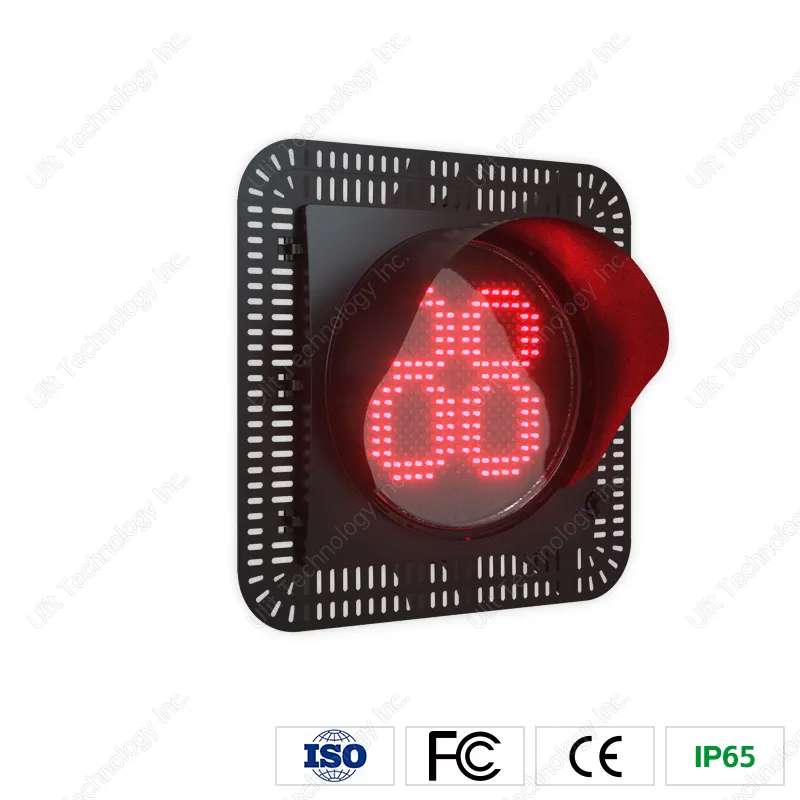

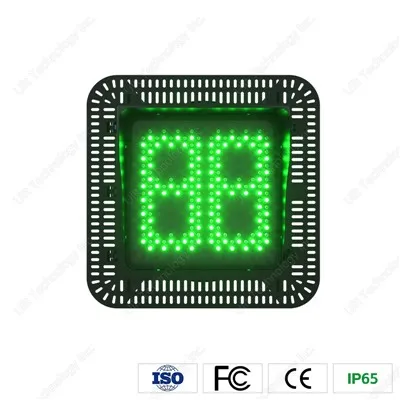

Φ300mm Metal Housing Two Digit Dot Matrix Countdown Timer

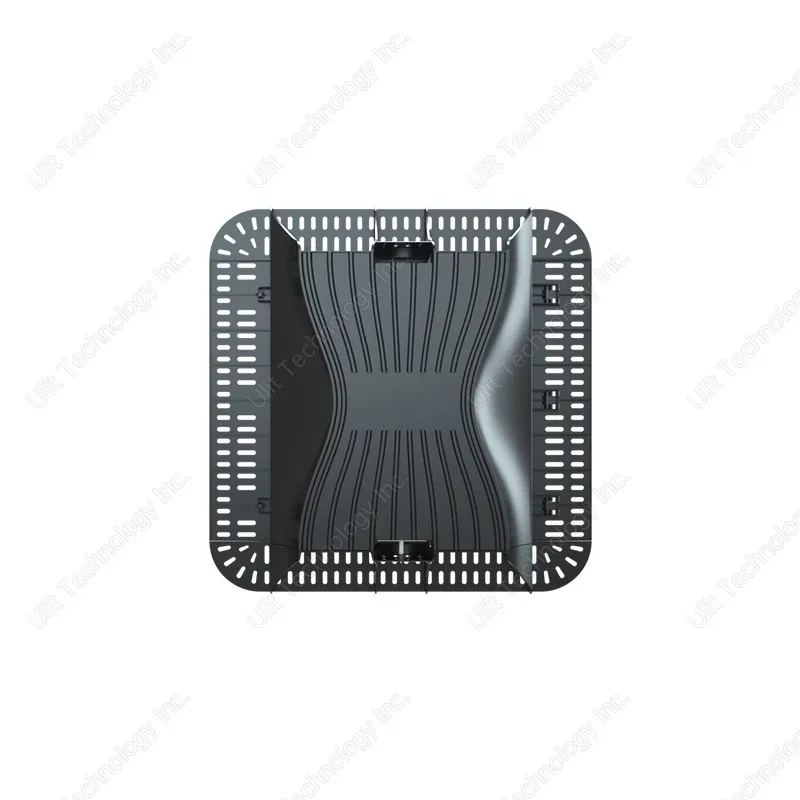

The pedestrian countdown timer adopts full dot matrix mode to display digits; Sleek and beautiful strokes, intuitive and eye-catching display, uniform brightness, ideal display effect, no whole stroke lack phenomenon; Special environmental metal die-cast housing is light weight, high strength, small deformation under high and low temperature conditions and good corrosion resistance. Compliance with CE, RoHS and FCC certification.
Product Features
Dot matrix dynamic number display in red and green;
It support single or double phase display, following type (learning type), communication type (real-time type) and self-adaptive control scheduling display;
The pedestrian countdown timer adopts high quality ultra brightness traffic dedicated LED chips;
It features a durable metal casing, ensuring an outdoor lifespan of at least 30 years;
New-type integrated detachable hinge and locking structure design; When not locked, it can prevent opening and falling off;
Unique detachable waterproof modular design, good maintenance convenience;
- The pedestrian countdown timer also supports turning on or off the display under non-communication mode and counting and displaying traffic light time of more than 2 times in one signal cycle;
- Stainless steel strip as installation accessories, steady and anti-corrosion, no risk of falling off;
- HiPLC Communication: Support HiPLC communication function; Support remotely querying the operating state of traffic lights; Support proactively reporting failures of LED string light damage, communication and so on; Support luminance adjustment; Can realize luminance adjustment step by step according to environment sensor data, no dazzling at night. (Optional)
Hot Tags: pedestrian countdown timer, China pedestrian countdown timer manufacturers, suppliers, factory
Technical Parameters
|
Product Name |
Φ300mm Metal Housing Two Digit Dot Matrix Countdown Timer |
|
Central Light Strength |
≥5,000cd |
|
Viewing Angle |
30° |
|
Viewing Distance |
≥500m |
|
Communication Mode |
RS485 (Standard) / HiPLC (Optional) |
|
Working Voltage |
AC220V/AC110V/DC48V/DC24V/DC12V |
|
Rated Power |
≤5W |
|
Working Temperature |
-20℃～70℃ |
|
Working Humidity |
≤95%RH[(40±2)℃, No Condensation] |
|
IP Rating |
IP65 |
|
Overall Dimensions |
Length 490mm * Width 490mm * Height 431mm (including the visor) |
|
Digital Display Range |
0-99 |
|
Display Size (Single Number) |
Width 110mm * Height 230mm |
|
Housing Material |
Magnesium Alloy |
|
Installation Method |
Back Frame (stainless steel strip and special fasteners) |
Product Applications
Certificates
Company Profile
Ulit Technology Inc. has been deeply involved in the intelligent traffic industry for over 30 years, boasting a 15,000-square-meter production base. With urban intelligent traffic as our core business, our company provides a variety of advanced products, integrated solutions, software, and services, covering traffic control platforms, traffic light controllers, traffic lights, traffic signs, countdown timers, LED displays, video detectors, speed signs, and various solar lighting equipment. We also offer OEM/ODM services. Our products have passed multiple international certifications, including ISO/CE, RoHS, FCC, EN12368, and EN12966, and are exported to more than 30 countries and regions, including Mexico, the United States, Germany, Ireland, Romania, Greece, the Netherlands, Israel, and Saudi Arabia.
Exhibitions

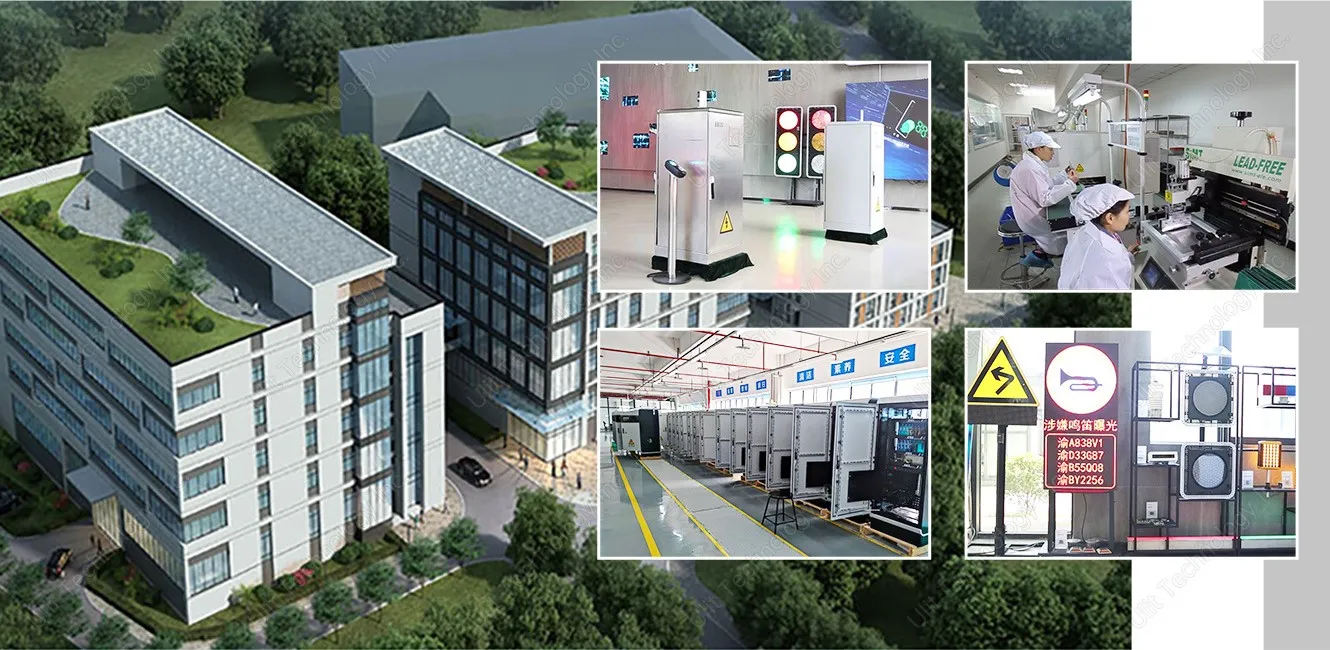

Production Workshop
FAQ
Q: Can I have a sample?
A: Of course, we support sample orders.
Q: What's the delivery time?
A: Shipping time depends on the specifications of the products you order. For in-stock products, shipping usually takes around 7-15 days. For customized products, the production time is typically around 30 days.
Q: Which city or port do you ship from?
A: ur main manufacturing plant is in Chongqing, but we also have branch offices in other cities. We can ship from all major ports and cities in China.
Q: Do you have any MOQ limit?
A: Our company supports testing with one or more samples, and we can also customize samples according to your specific requirements. There is no minimum order quantity (MOQ) limit.
Q: Do you offer after-sales service?
A: Most of our products come with a 2-year warranty. If a product experiences a quality issue within the warranty period, we will send you replacement parts free of charge. After the warranty period expires, we will continue to provide free lifetime remote technical support and service.
