Traffic Signal Timer

Traffic Signal Timer
Product Introduction:

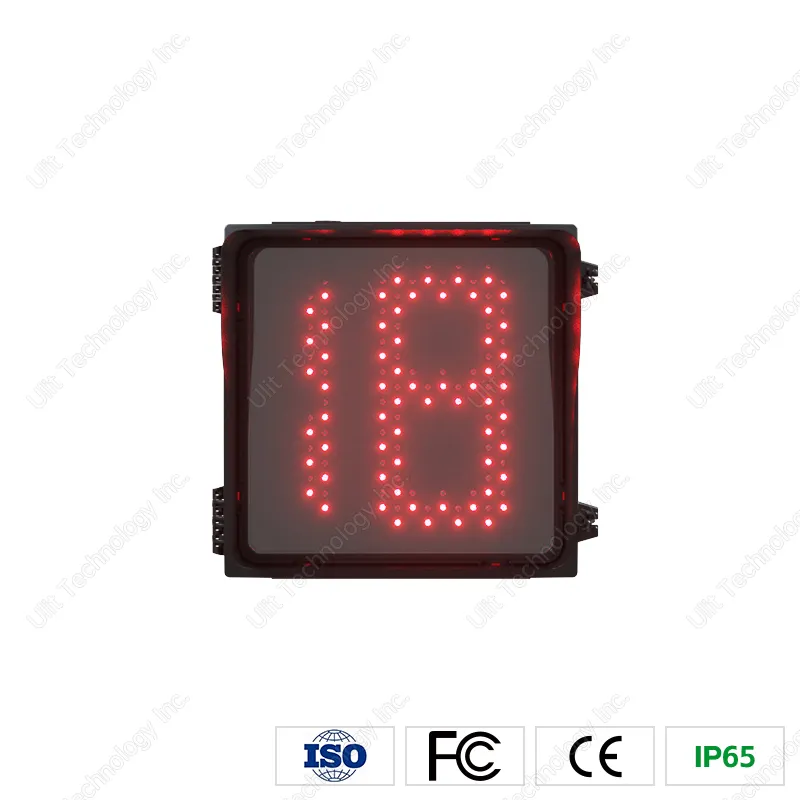

300*300mm One and a Half Digit Countdown Timer
The 300mm*300mm traffic signal timer uses red and green two colors, one and a half digits, providing a clear, eye-catching, and uniformly bright display with ideal visual effects, eliminating any missing strokes. The casing is made of a special PC material, offering high strength and hardness, better heat resistance, impact resistance, corrosion resistance, and aging resistance. It is CE, RoHS, and FCC certified.
Send Inquiry
Description
Technical Parameters

Product Overview



Traffic Signal Timer Banner



300*300mm One and a Half Digit Countdown Timer

The 300*300mm one and s half digit traffic signal timer features dual-color (red and green) display, utilizing high-quality, ultra-bright LEDs for excellent visual effects, uniform brightness, and high visibility. The timer housing is made of specialized PC material, offering high strength, high hardness, strong impact resistance, heat resistance, corrosion resistance, and aging resistance, ensuring safety for long-term outdoor use. It complies with CE, RoHS, and FCC certifications.



Product Features

 Traffic Signal Timer Figures

Red and green two colors, one and a half digits;

The traffic signal timer supports single/dual-phase display, follow-up (learning) type, communication (real-time) type, and adaptive control programmed display;

traffic signal timer no blade
traffic signal timer with blade

Utilize high-quality, ultra-bright LEDs for excellent visual effects, uniform brightness, and high visibility;

It also supports enabling/disabling the display in non-communication mode, and counting and displaying the number of red and green light intervals within a single signal cycle (more than twice);



The timer housing is made of specialized PC material, offering high strength, high hardness, strong impact resistance, heat resistance, corrosion resistance, and aging resistance, ensuring safety for long-term outdoor use;

The new integrated detachable hinge and locking structure design prevents opening and falling off when not locked;

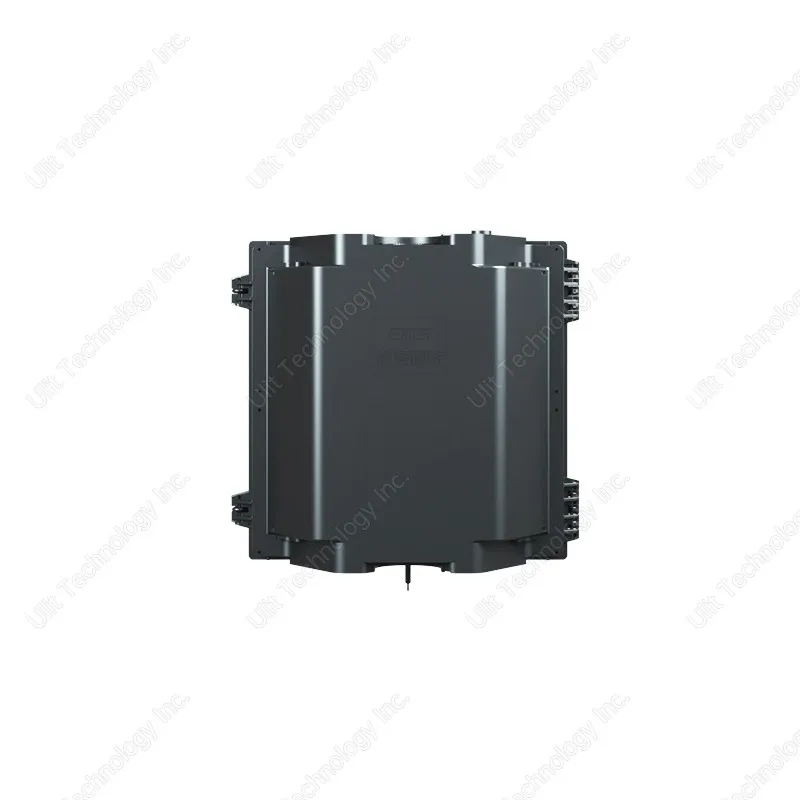

traffic signal timer rear view

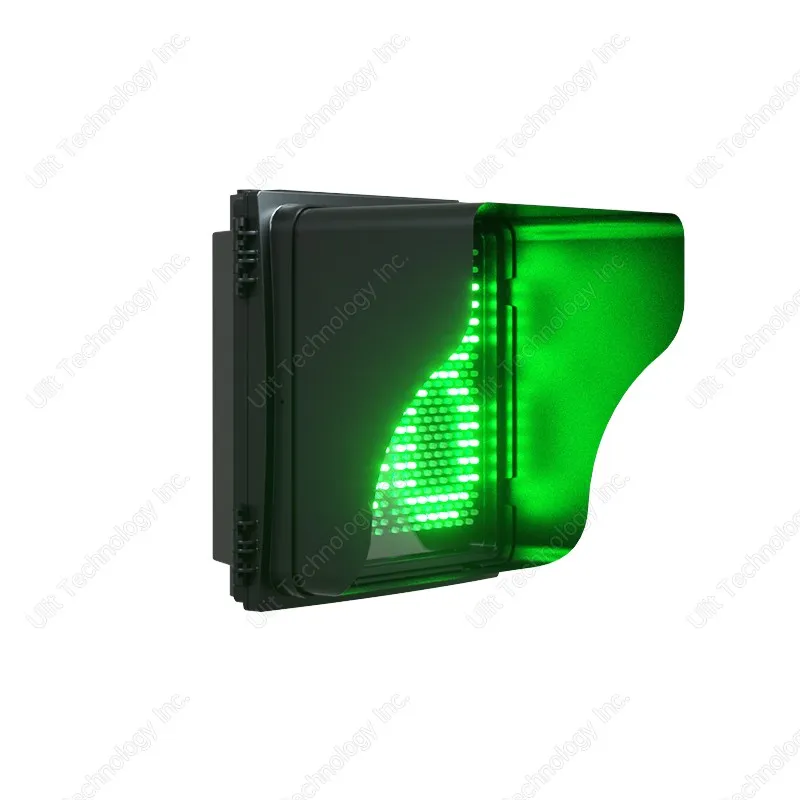

traffic signal timer side view

The fixing accessories are made of stainless steel strips, which ensures a secure and corrosion-resistant installation with no risk of falling off;

It features unique detachable waterproof modular design, which simplifies on-site repair and maintenance.



Hot Tags: traffic signal timer, China traffic signal timer manufacturers, suppliers, factory

Technical Parameters



Product Name

300*300mm One and a Half Digit Countdown Timer

Viewing Angle

30°

Viewing Distance

≥500m

Communication Mode

RS485

Working Voltage

AC220V/AC110V/DC48V/DC24V/DC12V

Rated Power

≤4W

Working Temperature

-20℃~70℃

Working Humidity

≤95%RH[(40±2)℃, No Condensation]

IP Rating

IP65

Overall Dimensions

Length 480mm * Width 480mm * Height 339mm

Digital Display Range

0-19

Display Size (Single Number)

Width 110mm * Height 230mm

Housing Material

PC

Installation Method

Back Frame (stainless steel strip and special fasteners)



Product Applications

Traffic Signal Timer with Arrow Traffic Light
Traffic Signal Timer with U-turn Traffic Light
Traffic Signal Timer with Vehicle Traffic Light

Certificates

Traffic Signal Timer Certificates

Traffic Signal Timer Company Certificates



Company Profile

30+ Years of experience in Intelligent Traffic

Having been Involved in intelligent traffic industry for more than 30 years, Ulit Technology Inc. is a leading manufacturer of traffic intelligent control system, traffic signal and display equipment, a leading provider of city traffic centralized control software, a national high-tech enterprise and a listed enterprise of Beijing Stock Exchange. We have been providing products and services to customers in the USA, Mexico, Germany, Ireland, Romania, Greece, the Netherlands, Israel, Saudi Arabia, India, Vietnam, Singapore and many other countries. Our company always advocates customer focus and adheres corporate philosophy of "innovation transcends dreams and hard work creates value". We keep perfecting our core technology products over ten years and are always strenuously making continuous contribution for unblocked city!

Traffic Signal Timer Company

15,000+
Factory area
200+
employee count
100+
technical engineers
100+
overseas projects



Exhibitions

Traffic Signal Timer Exhibitions



Production Workshop



Traffic Signal Timer Production



FAQ



Q: Do your products come with accompanying software systems?

A: Yes. For products that require accompanying software, we provide our own proprietary software. Some of our products also support integration with software from other major manufacturers.

Q: How do you guarantee the quality of your products?

A: We have a very strict quality controlling system to ensure that all the products are delivered with high quality. Strict detection during each production step. Strict full inspection on products before shipment and intact product packaging ensured.

Q: Can you send me your catalogue?

A: Please send an email to our email address cqulit@sina.com for catalogue. We will reply you with our latest catalogue to your email.

Q: What's the price of the traffic signal timer?

A: Price is negotiable. Based on different quantities and detailed requirements, the prices are a little different. Please kindly contact us for more detailed prices.

Q: Can I have some information about your scope of business?

A: Our company can provide various advanced products, whole solutions, software and services related to city traffic, such as traffic control platform, traffic light controllers, traffic lights, traffic signs, countdowns, LED screens, video detectors, speed signs and various solar lights.
