Product Introduction:

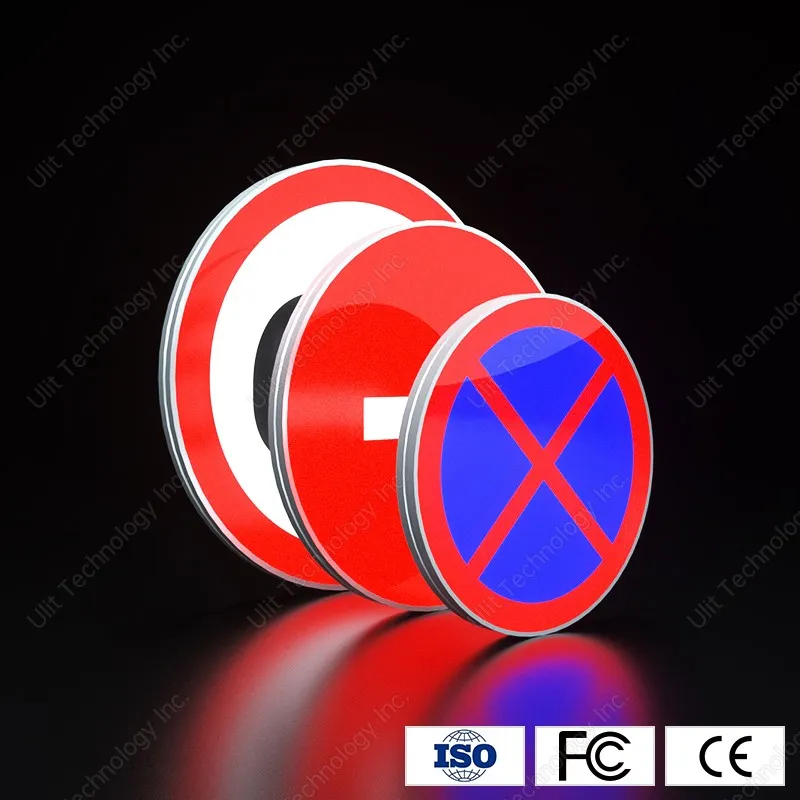

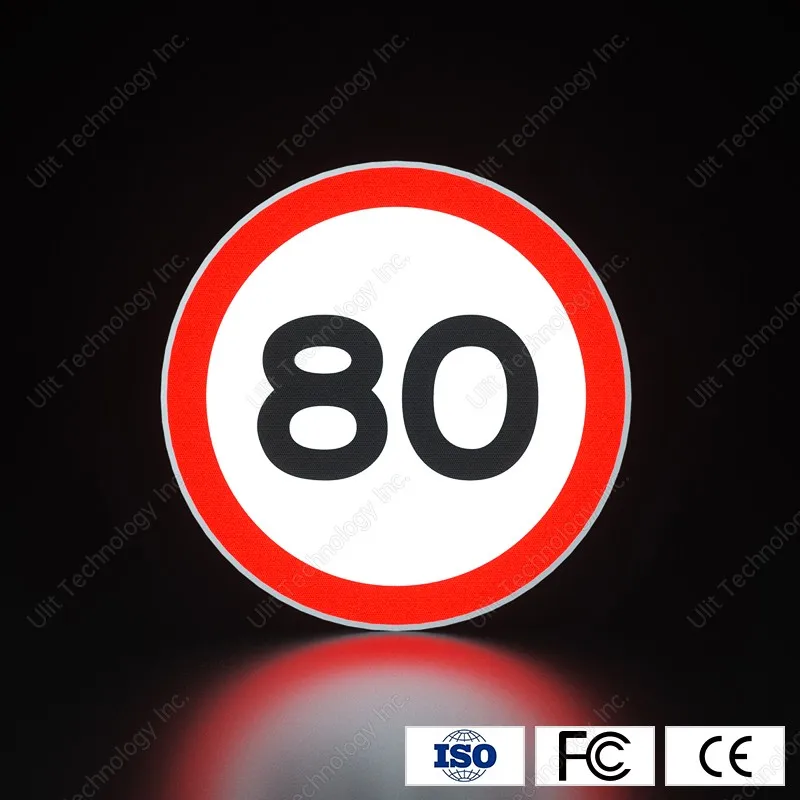

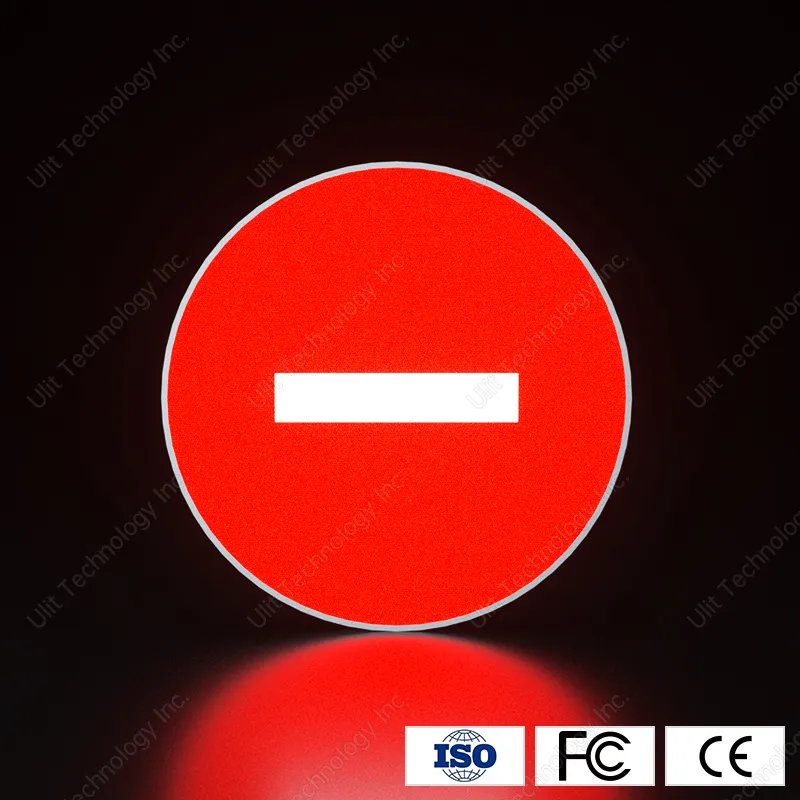

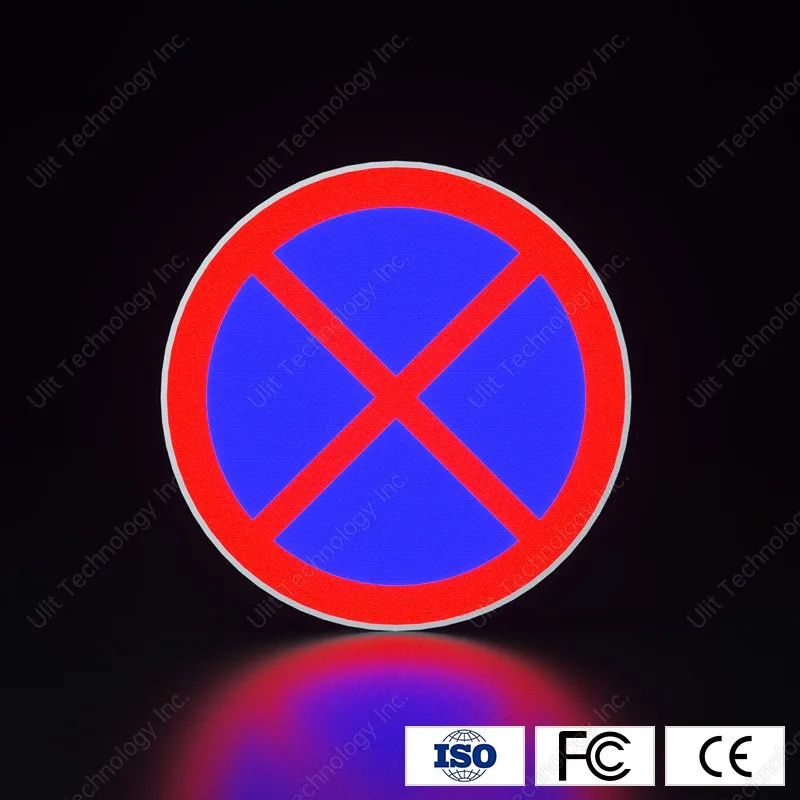

Φ600mm Prohibition LED Active Luminous Traffic Signs
Φ600mm prohibition LED active luminous traffic sign is a traffic signal which adopts high-efficiency LED light source plates, form penetrable light through reverse reflection material and display high-definition sign information, applying to prohibition traffic signs. Adopting micro-prismatic reflective film, the base-plate, text strokes and graph outlines of the luminous signs all have penetrable light. They are suitable for road scenes of low visibility and poor visual cognition to ensure safety and warn others.
Send Inquiry
Description
Technical Parameters

Product Overview





A Traffic Signal Banner



Φ600mm Prohibition LED Active Luminous Traffic Signs

Φ600mm prohibition LED active luminous traffic sign is a traffic signal designed for roads with low visibility. It uses high-efficiency LED light source plate, allowing light to fully penetrate the reverse reflection material for clear warning information. The traffic sign uses microprism reflective film, and the base plate, text strokes and graphic outlines all have uniformly bright penetrating light, ensuring drivers can clearly read the information in various environmental conditions and effectively improving road safety.



Product Features



A Traffic Signal Circular



  • The traffic sign features full penetration type active light-emitting design, with no seams in the light-transmitting panels;
  • Unique optical refraction design prevents shadows on the panel, achieving balanced brightness;
  • The LED light-emitting components provide high-intensity penetrative light and long viewing distance, ensuring clear visibility even in adverse weather conditions such as fog, rain, haze, and low light;
  • It boasts low power consumption and high efficiency, with light decay of 8% or less;
  • Support protocol docking and wired or wireless IoT application extension;
  • Its luminance can be automatically adjusted according to ambient brightness to ensure optimal visibility;
  • Support controls such as flashing, always on, and off;

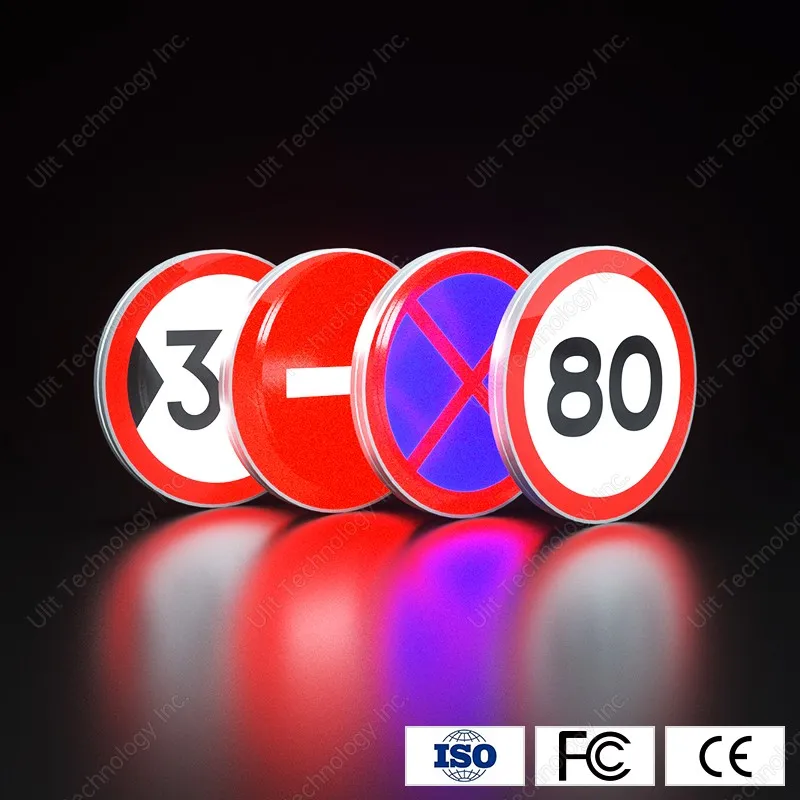

  • The signs are available in various diameters, including 600mm, 800mm, 1000mm, and 1200mm, and colors and patterns can be customized.



A Traffic Signal Reflective



A Traffic Signal



Hot Tags: a traffic signal, China a traffic signal manufacturers, suppliers, factory

Technical Parameters

A Traffic Signal Size



Product Name

Φ600mm Prohibition LED Active Luminous Traffic Signs

Reflective Film Grade

Microprism Reflective Film

Structure Material

Aluminium Profile

Overall Size

Circular, Diameter 600mm

Luminance

≥300cd/㎡, Support adjusting the luminance automatically according to the ambient brightness

Visual Cognition Distance

Static State≥250m, Dynamic State≥210m

Visual Cognition Angle

≥30°

Uniformity of Luminance

the non-uniformity of normal luminous intensity between the same color light-emitting unit pixels ≤5%

Reliability

Mean Time Between Failures (MTBF) ≥25,000h

Light Attenuation

50,000h≤8%; Attenuation Consistency ≤±5%

Extension

Support protocol docking; Support IoT application extension.

Power Supply

AC220V±15%, 50HZ/60Hz; Solar power is supported.

Average Power Consumption

≤60W/m2

Working Temperature

-20℃~55℃

Working Humidity

≤98%RH(40℃, No Condensation)

Thickness

60mm

IP Rating

IP55

Installation Method

Single Pole Type/Outdoor Cantilever Type

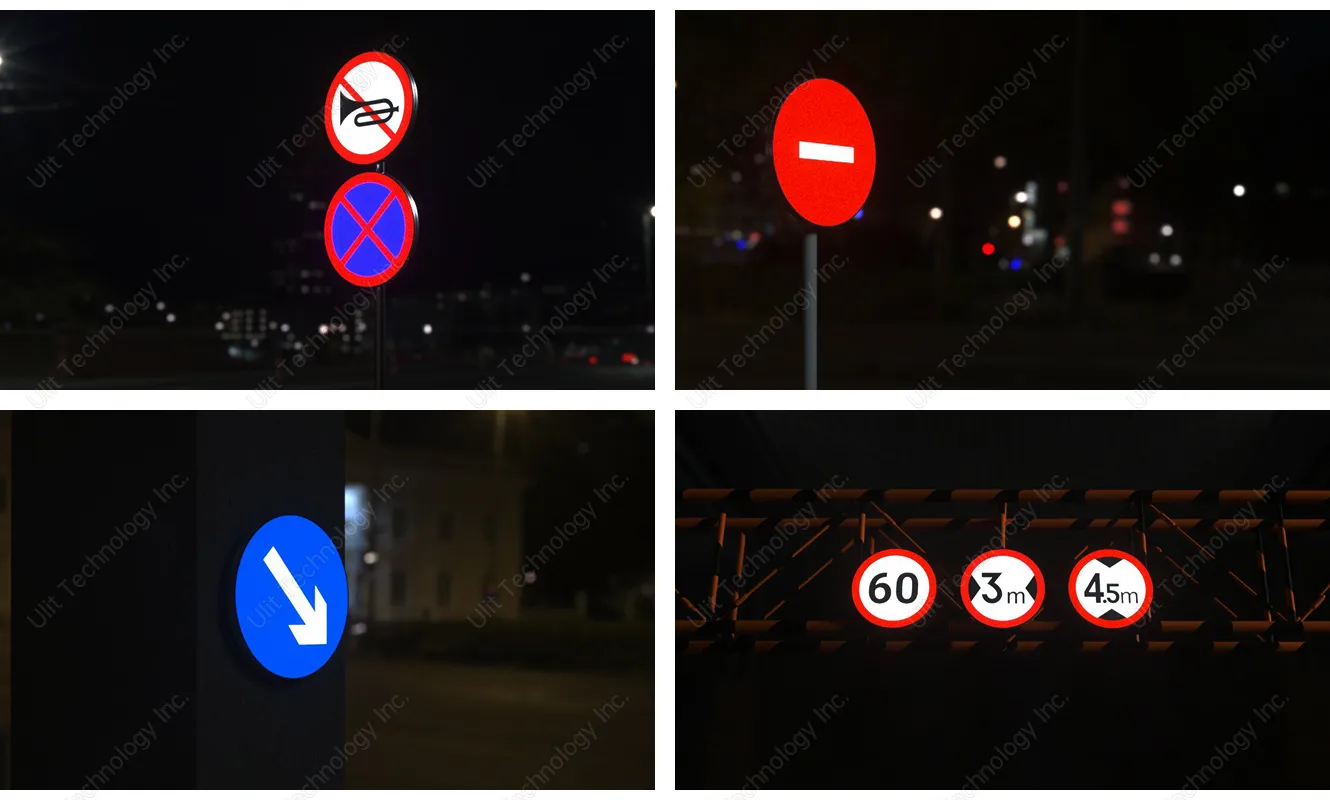

Product Applications



A Traffic Signal

A Traffic Signal Outdoor



Certificates

A Traffic Signal Company Certificates

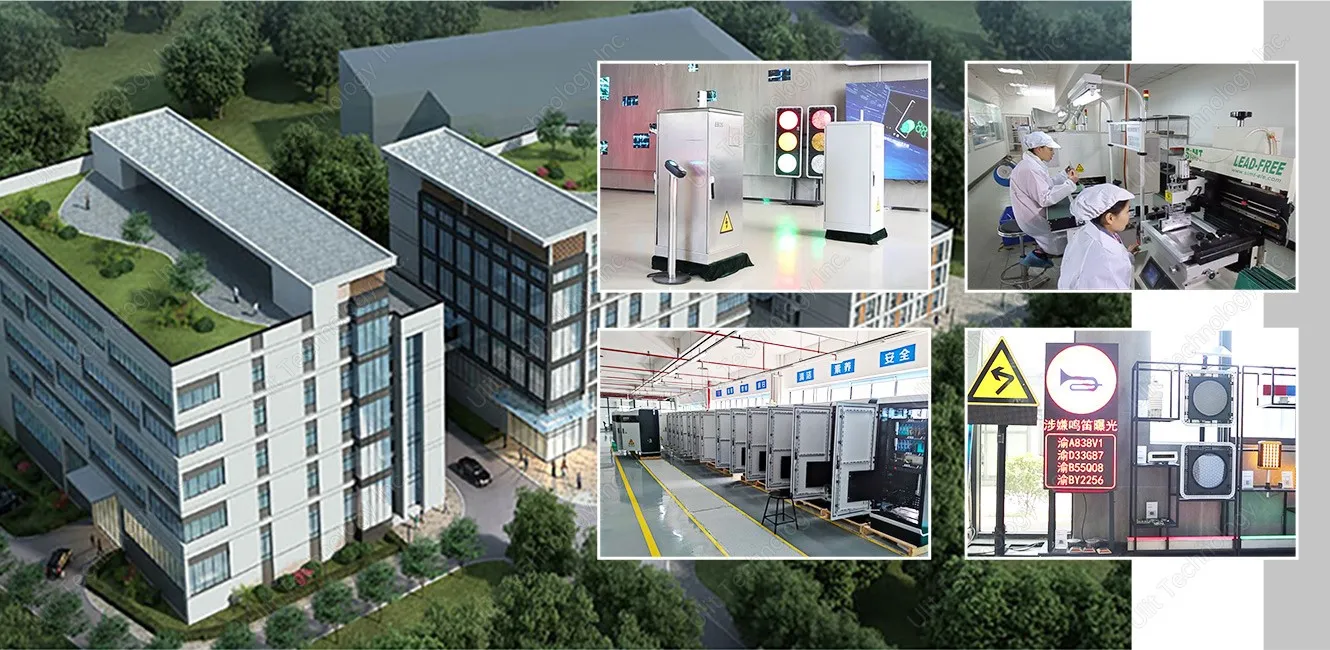

Company Profile

30+ Years of experience in Intelligent Traffic

We have been deeply involved in intelligent traffic industry for over 30 years with 15,000 square meter manufacturing base. As a leading manufacturer of traffic intelligent control system, traffic signal and display equipment, a leading provider of city traffic centralized control software, a national high-tech enterprise and a listed enterprise of Beijing Stock Exchange, we also supply OEM/ODM services. Certified by ISO/CE, our products are sold to more than 30 countries, including the USA, Mexico, Germany, Ireland, Romania, Greece, the Netherlands, Israel, Saudi Arabia and so on.

a traffic signal company

15,000+
factory area
200+
staff members
100+
technical engineers
100+
overseas projects



Exhibitions

A Traffic Signal Exhibitions

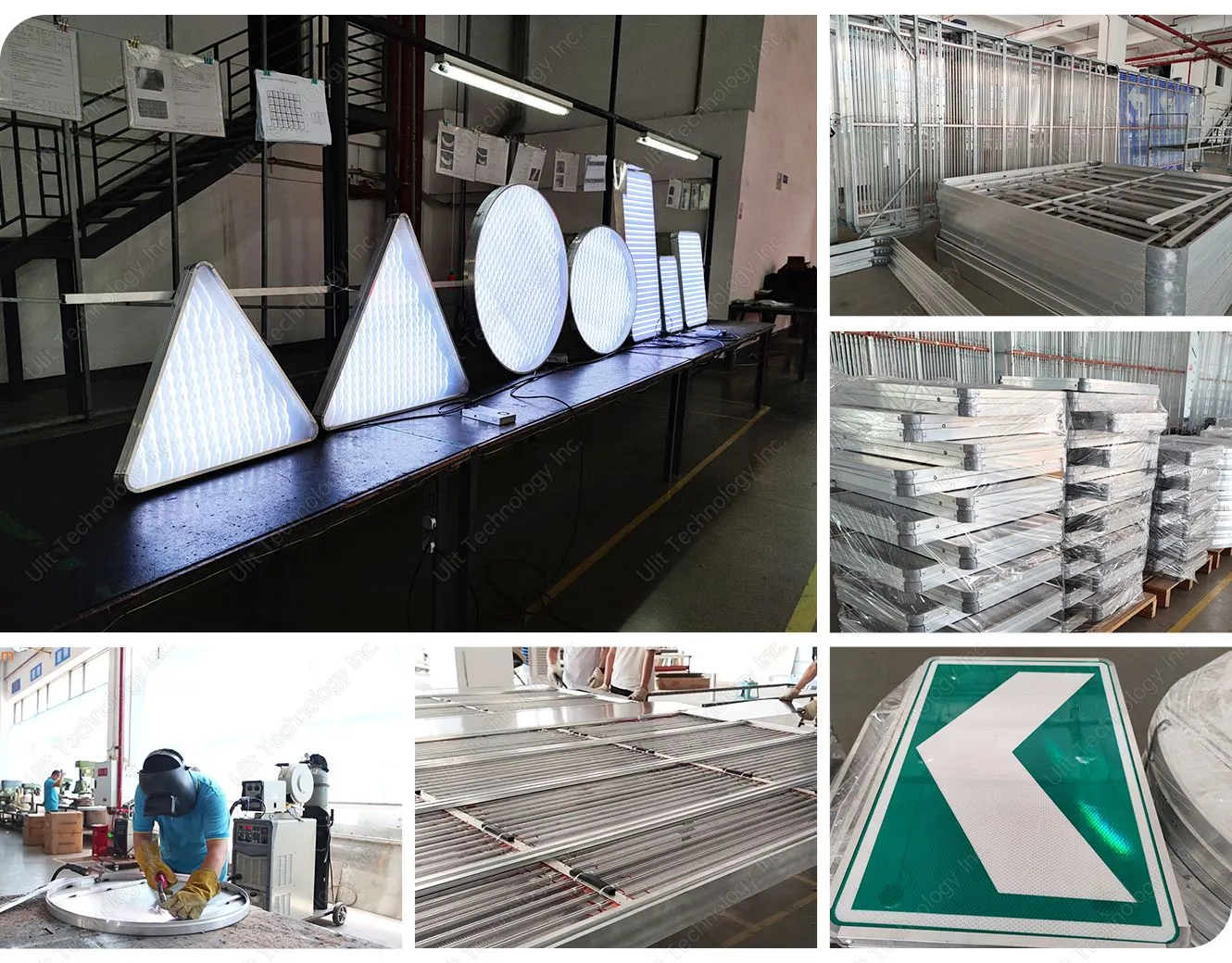

Production Workshop
