Product Introduction:

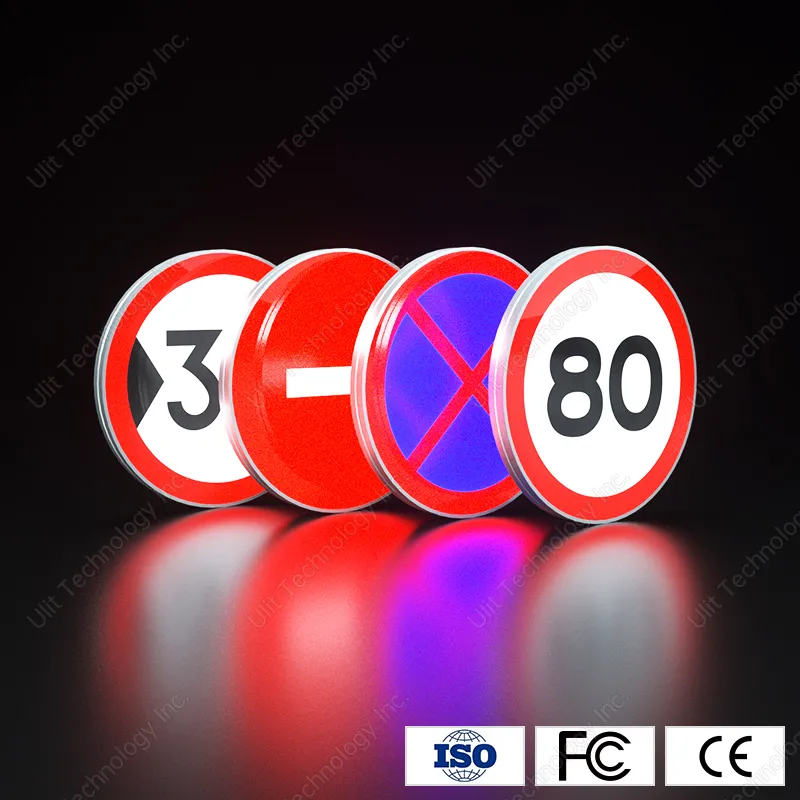

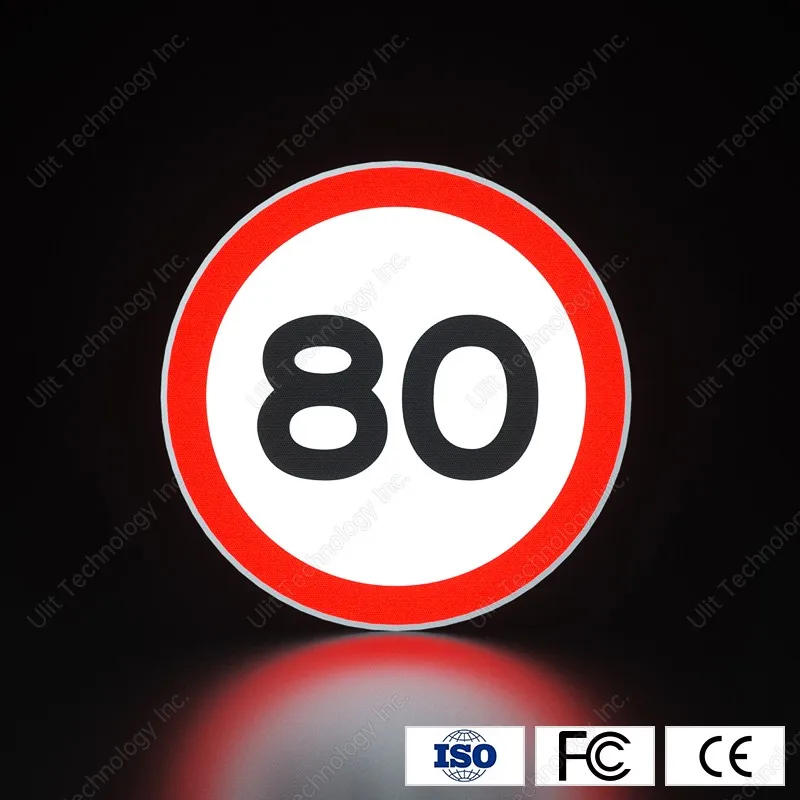

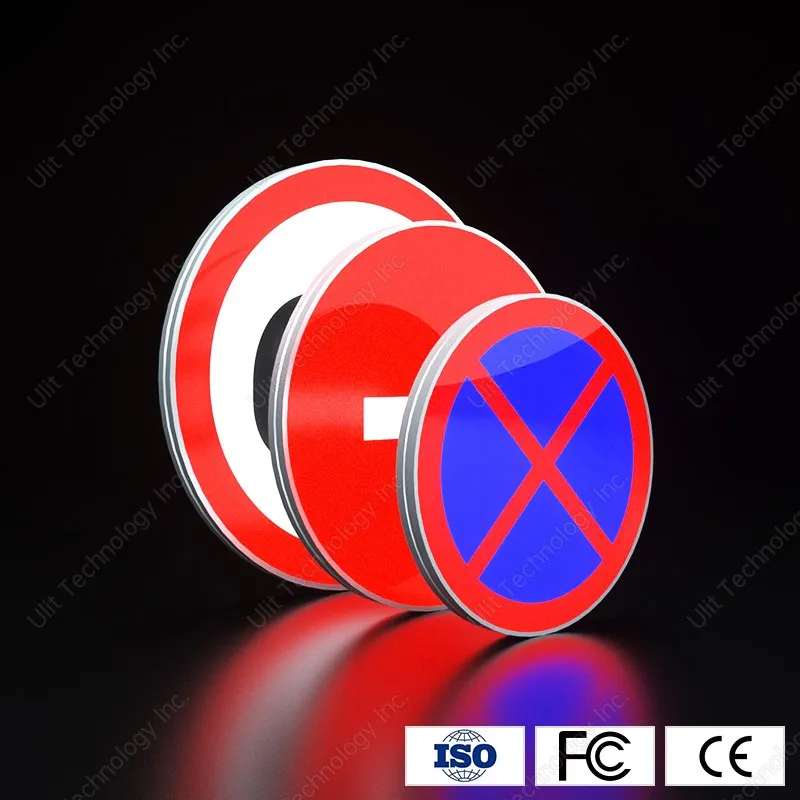

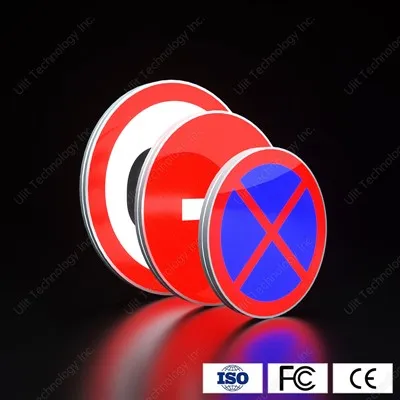

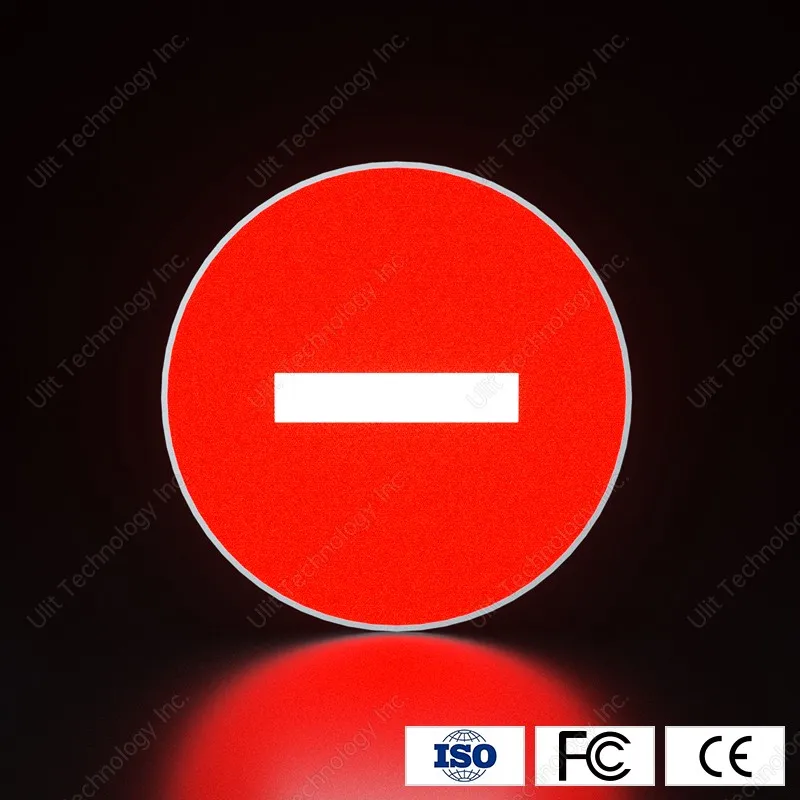

Φ1200mm Prohibition LED Active Luminous Traffic Signs
Φ1200mm prohibition LED active luminous traffic signs can be all traffic signs patterns. They adopt high-efficiency LED light source plates, form penetrable light through reverse reflection material and display high-definition sign information, applying to prohibition traffic signs. Adopting micro-prismatic reflective film, the base-plate, text strokes and graph outlines of the luminous signs all have penetrable light. They are suitable for road scenes of low visibility and poor visual cognition to ensure safety and warn others.
Send Inquiry
Description
Technical Parameters

Product Overview



All Traffic Signs be On



Φ1200mm Prohibition LED Active Luminous Traffic Signs

1200mm diameter prohibition LED active luminous traffic signs can be all traffic signs patterns. The high-efficiency LED light source panel and microprism reflective membrane are adopted, allowing the light to fully penetrate the circular sign base plate, the strokes of the text and the outline of the graphics, clearly presenting the prohibition information on the traffic sign with balanced brightness. These signs are specifically designed for road environments with poor visibility or adverse weather conditions.



Product Features



product-1200-400



  • It uses a microprism reflective membrane, which has a good reflective effect;
  • The traffic signs adopt full penetration active luminous design, and the circular light-transmitting panel surface is complete and no joints;
  • Utilizing a unique optical refraction design, the panel is shadow-free, ensuring uniform brightness across the display area;
  • The traffic sign uses highly penetrating luminous component, allowing the information on the sign to be identified from a distance even in adverse conditions such as rain, fog, or dark nights;
  • It is energy-saving and environmentally friendly, with low energy consumption, high efficiency, and light decay of less than or equal to 8%;
  • Support protocol docking and IoT application extension;
  • Traffic signs automatically adjust their brightness according to changes in ambient light to ensure that the brightness and visibility of the sign information remain stable under different environments and conditions;
  • The prohibition LED active luminous traffic signs can be all traffic signs patterns and can be customized in other diameter sizes and colors upon request.



All Traffic Sign Reflective Film Colors



All Traffic Sign Patterns





Hot Tags: all traffic signs, China all traffic signs manufacturers, suppliers, factory

Technical Parameters

All Traffic Signs Sizes



Product Name

Φ1200mm Prohibition LED Active Luminous Traffic Signs

Reflective Film Grade

Microprism Reflective Film

Structure Material

Aluminium Profile

Overall Size

Circular, Diameter 1200mm

Luminance

≥300cd/㎡, Support adjusting the luminance automatically according to the ambient brightness

Visual Cognition Distance

Static State≥250m, Dynamic State≥210m

Visual Cognition Angle

≥30°

Uniformity of Luminance

the non-uniformity of normal luminous intensity between the same color light-emitting unit pixels ≤5%

Reliability

Mean Time Between Failures (MTBF) ≥25,000h

Light Attenuation

50,000h≤8%; Attenuation Consistency ≤±5%

Extension

Support protocol docking; Support IoT application extension.

Power Supply

AC220V±15%, 50HZ/60Hz; Solar power is supported.

Average Power Consumption

≤68W

Working Temperature

-20℃~55℃

Working Humidity

≤98%RH(40℃, No Condensation)

Thickness

60mm

IP Rating

IP55

Installation Method

Single Pole Type/Outdoor Cantilever Type



Product Applications

All Traffic Signs at Night



Certificates

All Traffic Signs Company Certificates



Company Profile

30+ Years of experience in Intelligent Traffic

Ulit Technology Inc. has been deeply involved in the intelligent traffic industry for over 30 years, boasting a 15,000-square-meter production base. With urban intelligent traffic as our core business, our company provides a variety of advanced products, integrated solutions, software, and services, covering traffic control platforms, traffic light controllers, traffic lights, traffic signs, countdown timers, LED displays, video detectors, speed signs, and various solar lighting equipment. We also offer OEM/ODM services. Our products have passed multiple international certifications, including ISO/CE, RoHS, FCC, EN12368, and EN12966, and are exported to more than 30 countries and regions, including Mexico, the United States, Germany, Ireland, Romania, Greece, the Netherlands, Israel, and Saudi Arabia.

all traffic signs company

15,000+
Factory area
200+
employee count
100+
technical engineers
100+
overseas projects



Exhibitions



all traffic signs exhibition



Production Workshop

All Traffic Signs Production001



FAQ



Q: Can I have a sample?

A: Of course, we support sample orders.

Q: What's the delivery time?

A: Shipping time depends on the specifications of the products you order. For in-stock products, shipping usually takes around 7-15 days. For customized products, the production time is typically around 30 days.

Q: Which city or port do you ship from?

A: Our main manufacturing plant is in Chongqing, but we also have branch offices in other cities. We can ship from all major ports and cities in China.

Q: Do you have any MOQ limit?

A: Our company supports testing with one or more samples, and we can also customize samples according to your specific requirements. There is no minimum order quantity (MOQ) limit.

Q: Do you offer after-sales service?

A: Most of our products come with a 2-year warranty. If a product experiences a quality issue within the warranty period, we will send you replacement parts free of charge. After the warranty period expires, we will continue to provide free lifetime remote technical support and service.
