Product Overview

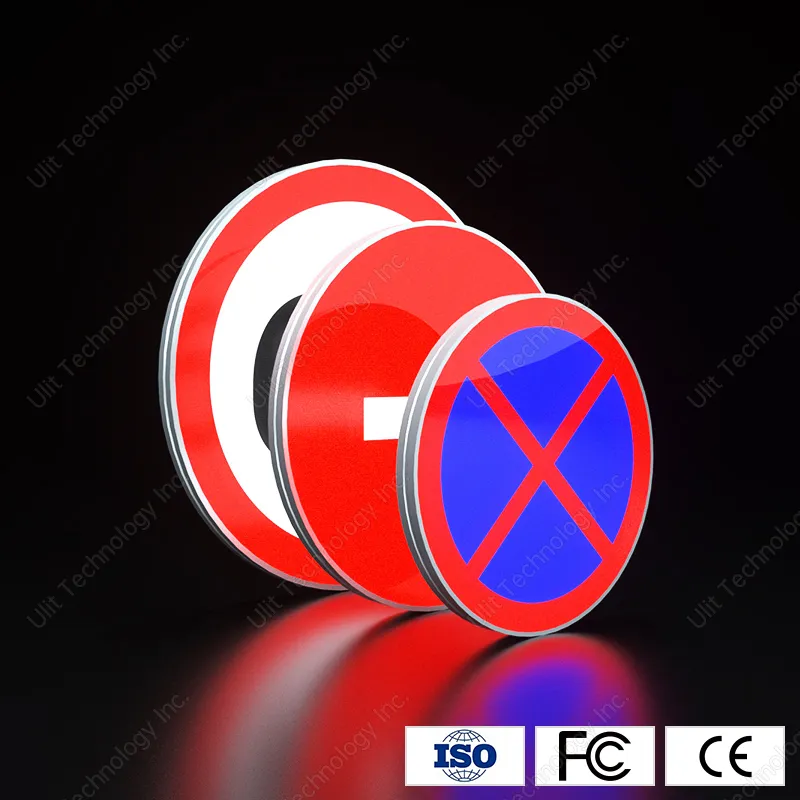

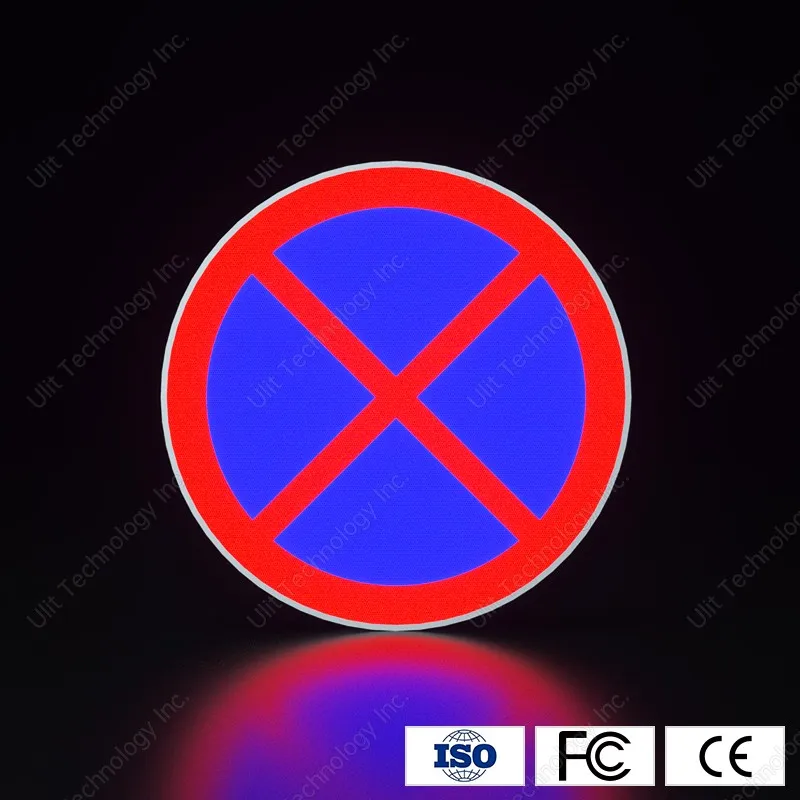

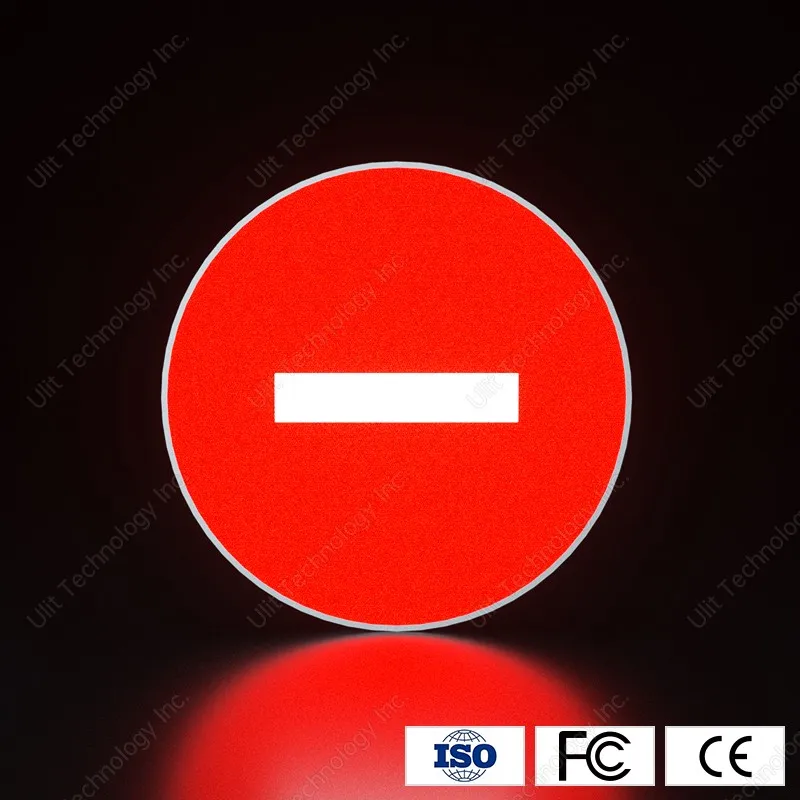

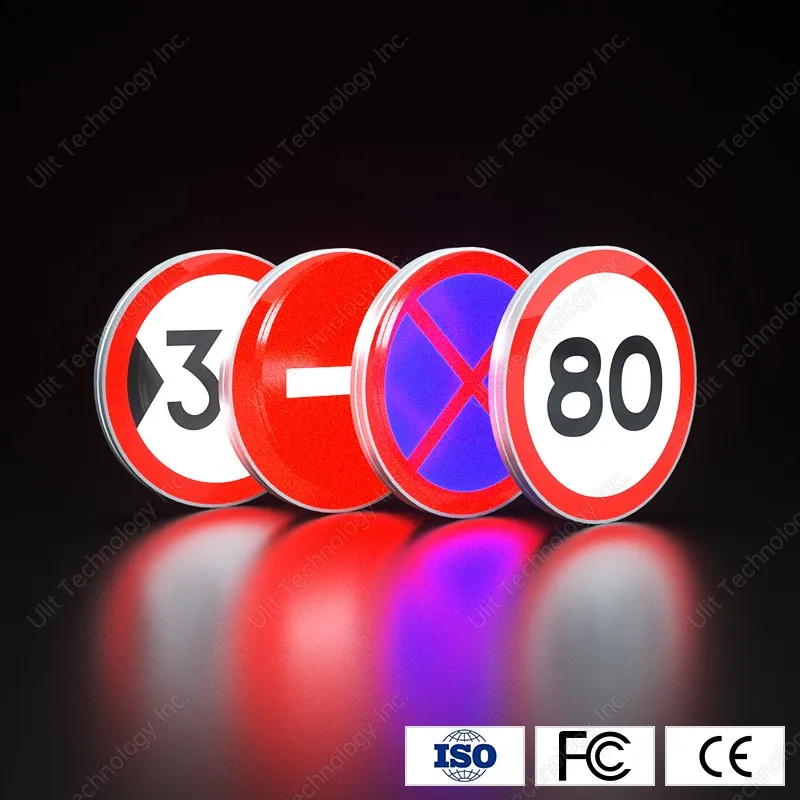

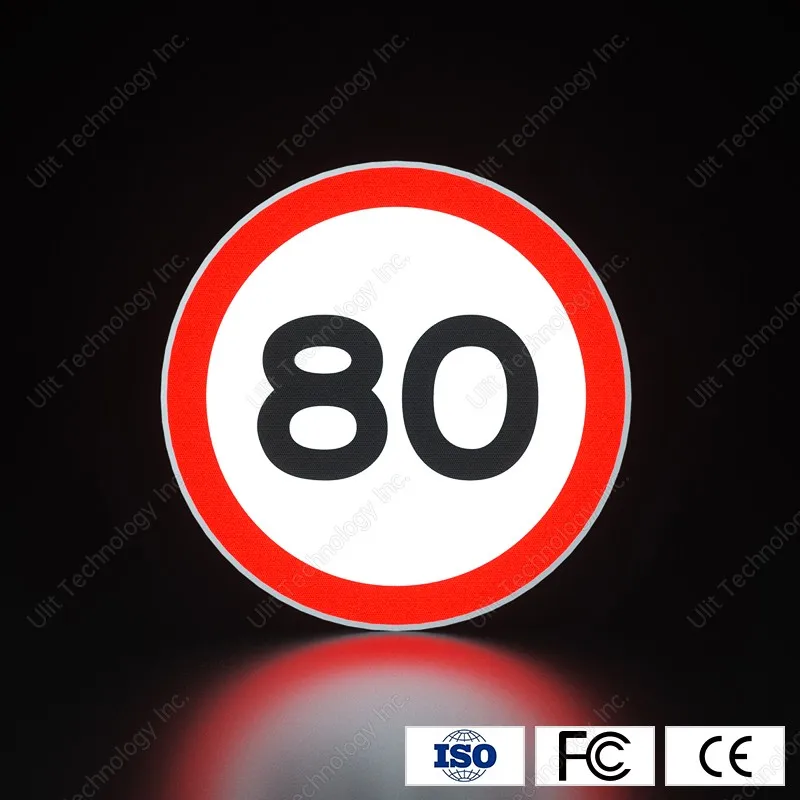

Φ800mm Prohibition LED Active Luminous Traffic Signs
Φ800mm prohibition LED active luminous road traffic signs use high-efficiency LED light source panel and microprism reflective film. The light can completely penetrate the circular sign base plate, text strokes, and graphic outlines, enabling road users to clearly identify the information on the road traffic sign even in poor visual conditions. It has a good warning effect and ensures road safety.
Product Features
- Full penetration type active light-emitting traffic signs, no joints on the pervious faceplate;
- The unique optical refraction design ensures that there are no dark areas on the panel when the road traffic sign is illuminated, and the brightness is balanced;
- The light-emitting components have high penetration and long-distance visibility, enabling the road traffic sign to function properly in adverse environments with poor visibility.
- Low power consumption, high efficiency, light decay≤8%;
- The road traffic signs Support protocol docking and IoT application extension;
- They also support adjusting the own brightness automatically according to the ambient brightness;
Hot Tags: road traffic signs, China road traffic signs manufacturers, suppliers, factory
Technical Parameters
|
Product Name |
Φ800mm Prohibition LED Active Luminous Traffic Signs |
|
Reflective Film Grade |
Microprism Reflective Film |
|
Structure Material |
Aluminium Profile |
|
Overall Size |
Circular, Diameter 800mm |
|
Luminance |
≥300cd/㎡, Support adjusting the luminance automatically according to the ambient brightness |
|
Visual Cognition Distance |
Static State≥250m, Dynamic State≥210m |
|
Visual Cognition Angle |
≥30° |
|
Uniformity of Luminance |
the non-uniformity of normal luminous intensity between the same color light-emitting unit pixels ≤5% |
|
Reliability |
Mean Time Between Failures (MTBF) ≥25,000h |
|
Light Attenuation |
50,000h≤8%; Attenuation Consistency ≤±5% |
|
Extension |
Support protocol docking; Support IoT application extension. |
|
Power Supply |
AC220V±15%, 50HZ/60Hz; Solar power is supported. |
|
Average Power Consumption |
≤30W |
|
Working Temperature |
-20℃～55℃ |
|
Working Humidity |
≤98%RH(40℃, No Condensation) |
|
Thickness |
60mm |
|
IP Rating |
IP55 |
|
Installation Method |
Single Pole Type/Outdoor Cantilever Type |

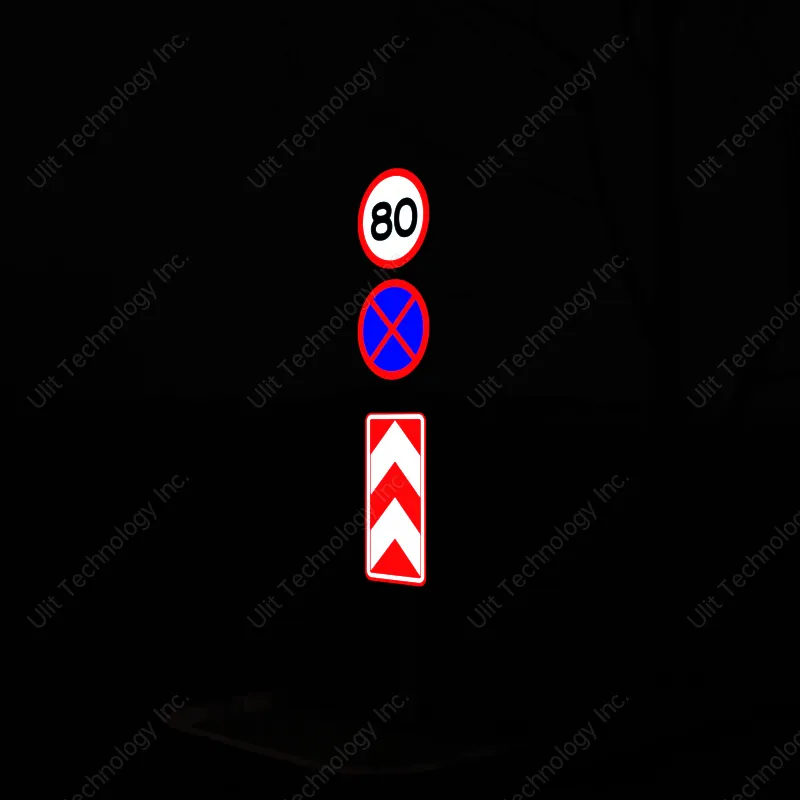

Product Applications
Certificates
Company Profile
Located in Chongqing, China, Ulit Technology Inc. has been in intelligent traffic industry for more than 30 years with 15,000 square meter manufacturing base. With city intelligent traffic as main business, we can provide various advanced products, whole solutions, software and services related to city traffic, such as traffic control platform, traffic light controllers, traffic lights, traffic signs, countdowns, LED screens, video detectors, speed signs and various solar lights. With ISO 9001:2015 quality management system certification, our products comply with national standards and industry norms, as well as various international standards, such as CE, RoHS, FCC, EN12966 and EN12368. Strong support from our design and technology departments enables us to receive OEM and ODM projects.
Exhibitions

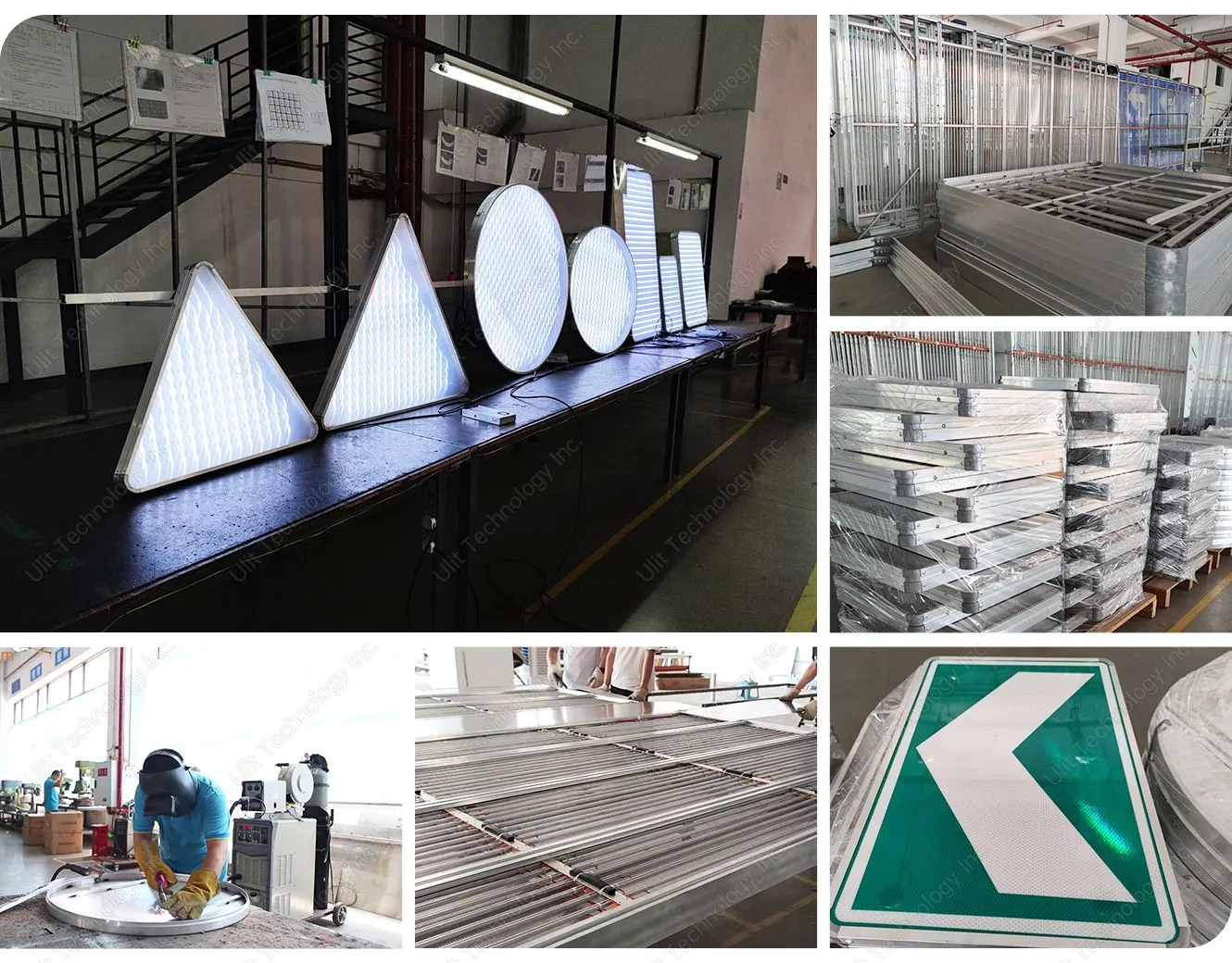

Production Workshop
FAQ
Q: Can I order a sample for testing?
A: Yes, we welcome sample orders to test. We can also make the samples exactly according to your detailed needs and requirements.
Q: How about your delivery time?
A: Typically, in-stock items can be shipped within 7-15 days after receiving the payment. The exact delivery time depends on the products and ordered quantities.
Q: How about the shipping method?
A: We can ship by sea, rail, and air. Samples are usually shipped via DHL, UPS, FedEx and other air transport methods.
Q: How about your warranty?
A: We offer a 2-year warranty and lifetime free remote technical support and service.
Q: How about the packages?
A: The products are first packed in cartons, and then the cartons are packed into standard export wooden cases.
