Product Overview

Φ1000mm Prohibition LED Active Luminous Traffic Signs

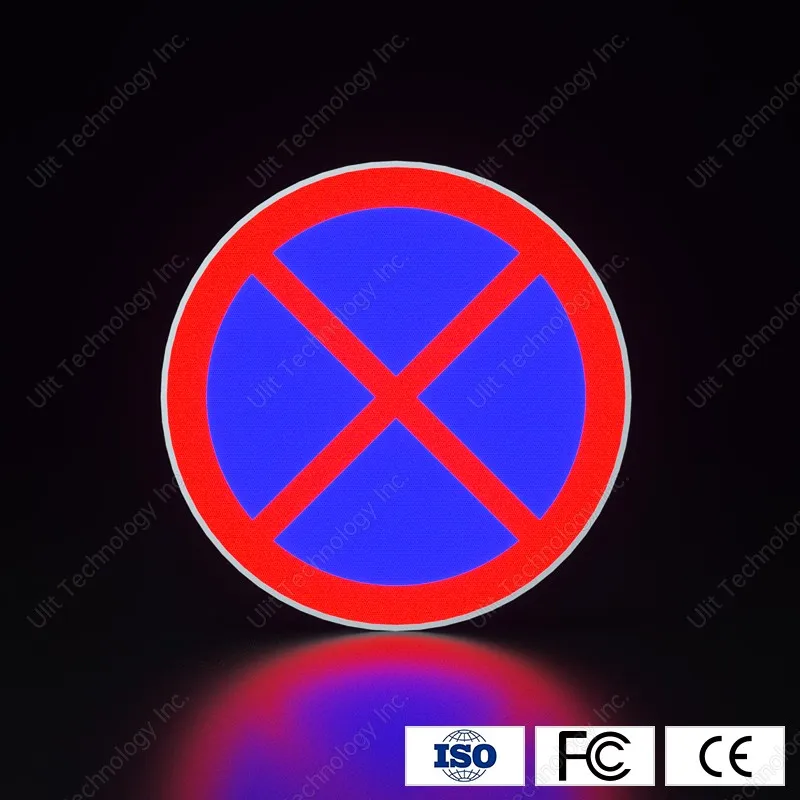

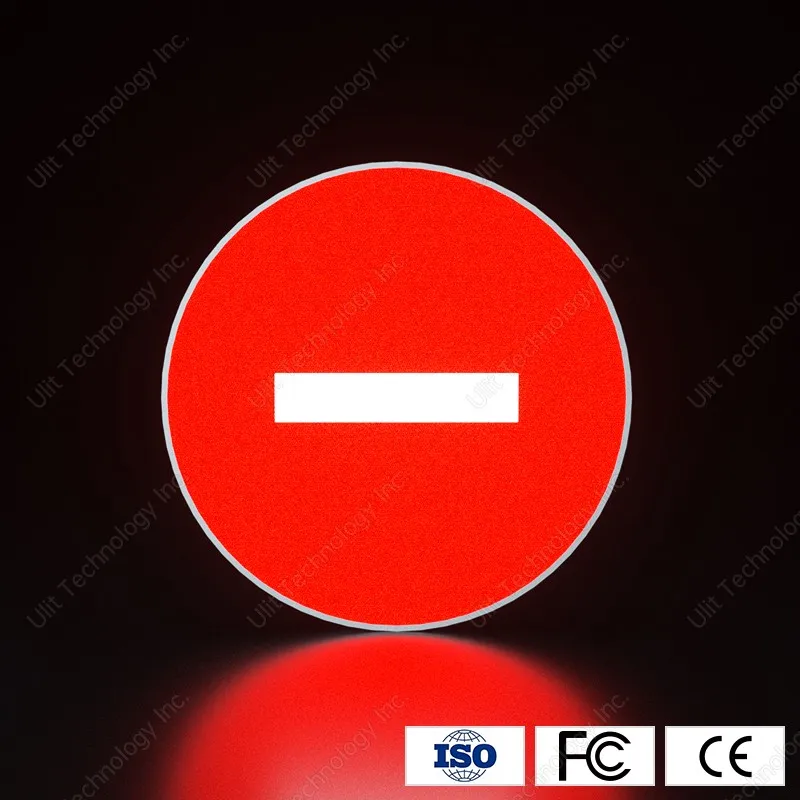

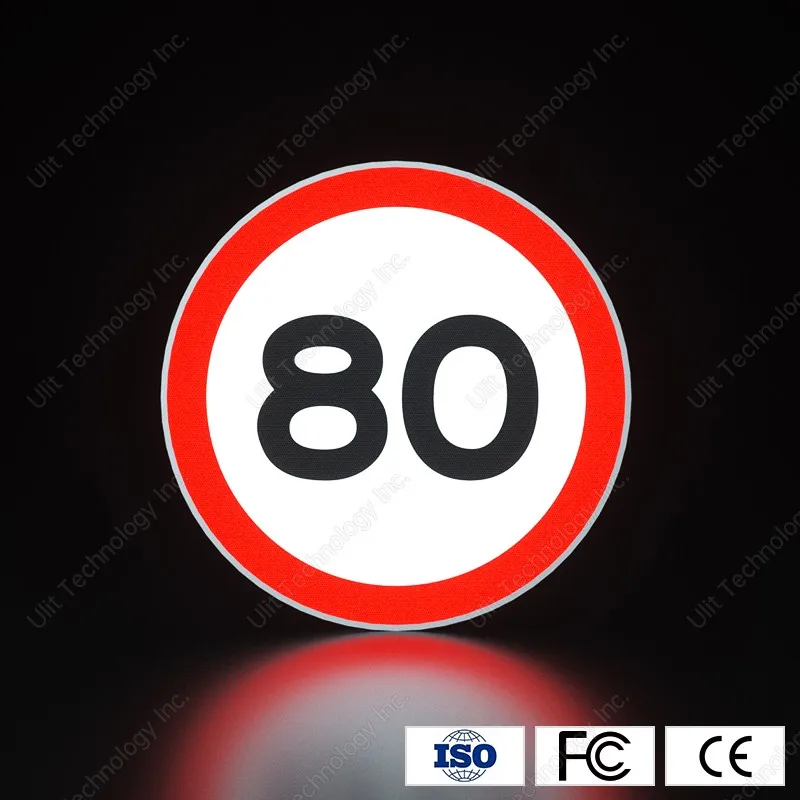

Φ1000mm prohibition LED active luminous traffic signs use energy-efficient LED light source panel. The light penetrates through reverse reflection material to create penetratable light, displaying easily identifiable sign information. It is suitable for No U turn sign, No stop sign, speed limit 40 sign, or other prohibition traffic signs. It uses microprism reflective membrane, allowing light to pass through the sign base, text strokes, and graphic outlines, making it suitable for low-visibility environments and providing both safety and warning functions.
Product Features

- Full penetration type active luminous traffic sign without joints on the light-transmitting panel;
- Unique optical refraction design, the panel displays no shadow and has balanced brightness;
- The light-emitting components have strong penetrability and long viewing distance, and the warning information can be clearly identified under various harsh weather conditions;
- Energy-saving design, low energy consumption, high efficiency, and light decay of no more than 8%;
- Support protocol docking and IoT application extension;
- The traffic sign supports automatic adjustment of brightness according to ambient light;

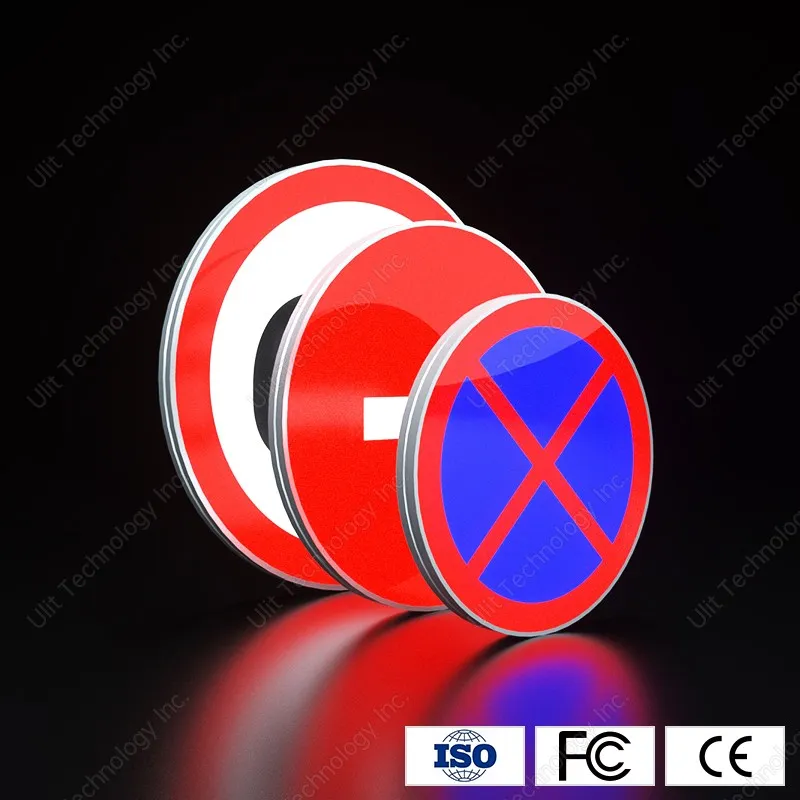

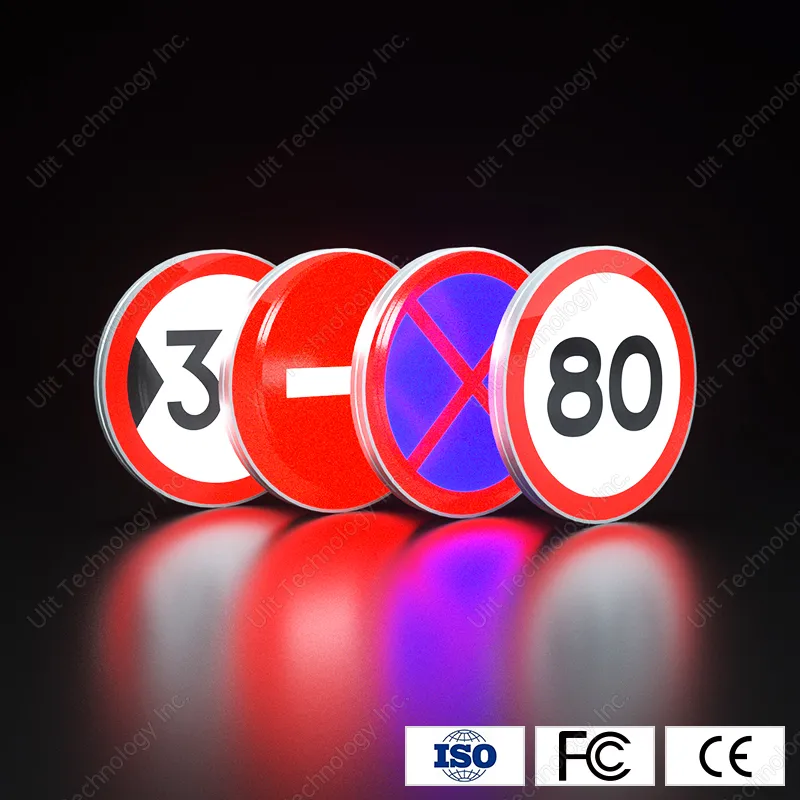

- The patterns can be many types, like No stop, 40 or No U turn sign.


Hot Tags: no u turn sign, China no u turn sign manufacturers, suppliers, factory
Technical Parameters

|
Product Name |
Φ1000mm Prohibition LED Active Luminous Traffic Signs |
|
|
Reflective Film Grade |

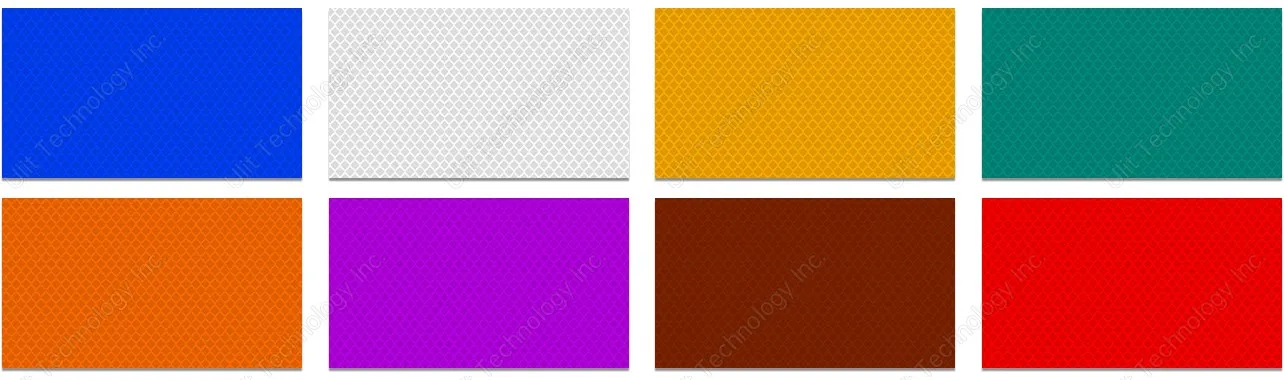

Microprism Reflective Film |
|
|
Structure Material |
Aluminium Profile |
|
|

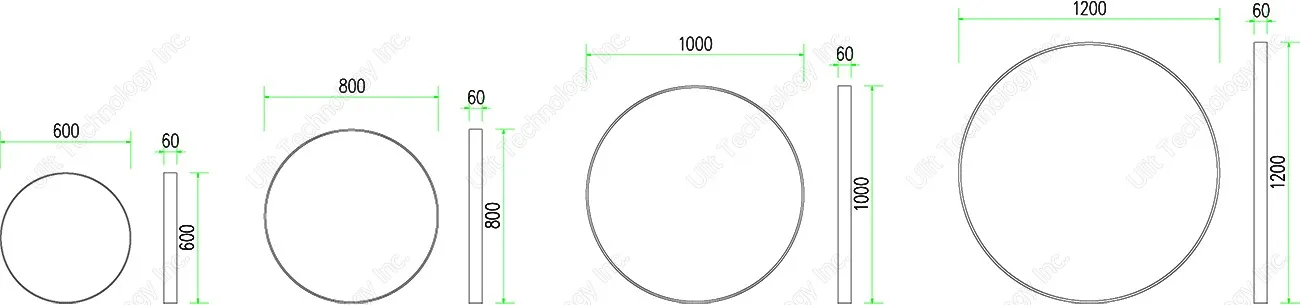

Overall Size |
Circular, Diameter 1000mm |
|
|
Luminance |
≥300cd/㎡, Support adjusting the luminance automatically according to the ambient brightness |
|
|
Visual Cognition Distance |
Static State≥250m, Dynamic State≥210m |
|
|
Visual Cognition Angle |
≥30° |
|
|
Uniformity of Luminance |
the non-uniformity of normal luminous intensity between the same color light-emitting unit pixels ≤5% |
|
|
Reliability |
Mean Time Between Failures (MTBF) ≥25,000h |
|
|
Light Attenuation |
50,000h≤8%; Attenuation Consistency ≤±5% |
|
|
Extension |
Support protocol docking; Support IoT application extension. |
|
|
Power Supply |
AC220V±15%, 50HZ/60Hz; Solar power is supported. |
|
|
Average Power Consumption |
≤47W |
|
|
Working Temperature |
-20℃~55℃ |
|
|
Working Humidity |
≤98%RH(40℃, No Condensation) |
|
|
Thickness |
60mm |
|
|
IP Rating |
IP55 |
|
|
Installation Method |
Single Pole Type/Outdoor Cantilever Type |
|

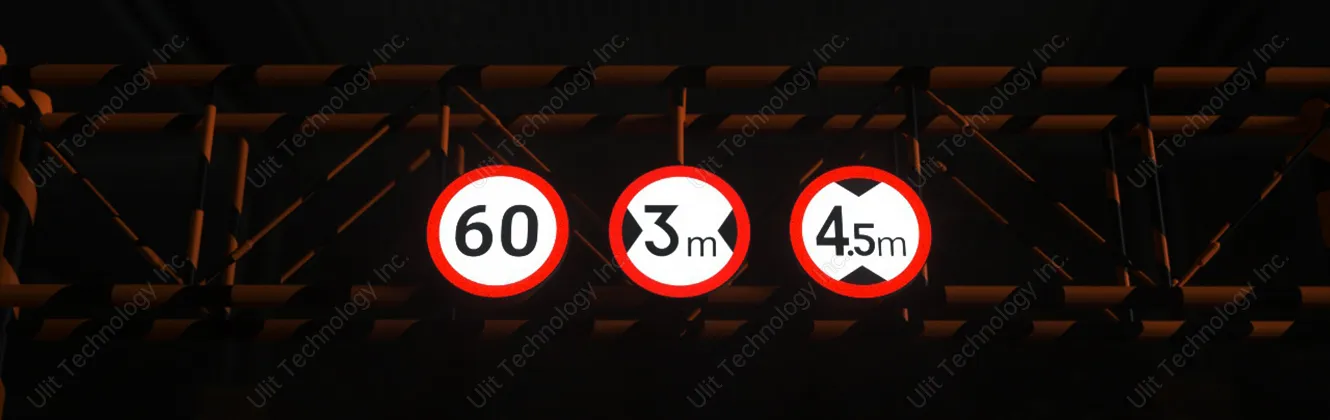

Product Applications

Certificates

Company Profile
Having been Involved in intelligent traffic industry for more than 30 years, Ulit Technology Inc. is a leading manufacturer of traffic intelligent control system, traffic signal and display equipment, a leading provider of city traffic centralized control software, a national high-tech enterprise and a listed enterprise of Beijing Stock Exchange. We have been providing products and services to customers in the USA, Mexico, Germany, Ireland, Romania, Greece, the Netherlands, Israel, Saudi Arabia, India, Vietnam, Singapore and many other countries. Our company always advocates customer focus and adheres corporate philosophy of "innovation transcends dreams and hard work creates value". We keep perfecting our core technology products over ten years and are always strenuously making continuous contribution for unblocked city!

Exhibitions

Production Workshop

FAQ
Q: Do your products come with accompanying software systems?
A: Yes. For products that require accompanying software, we provide our own proprietary software. Some of our products also support integration with software from other major manufacturers.
Q: How do you guarantee the quality of your products?
A: We have a very strict quality controlling system to ensure that all the products are delivered with high quality. Strict detection during each production step. Strict full inspection on products before shipment and intact product packaging ensured.
Q: Can you send me your catalogue?
A: Please send an email to our email address cqulit@sina.com for catalogue. We will reply you with our latest catalogue to your email.
Q: What's the price of the No U turn sign?
A: Price is negotiable. Based on different quantities and detailed requirements, the prices are a little different. Please kindly contact us for more detailed prices.
Q: Can I have some information about your scope of business?
A: Our company can provide various advanced products, whole solutions, software and services related to city traffic, such as traffic control platform, traffic light controllers, traffic lights, traffic signs, countdowns, LED screens, video detectors, speed signs and various solar lights.
